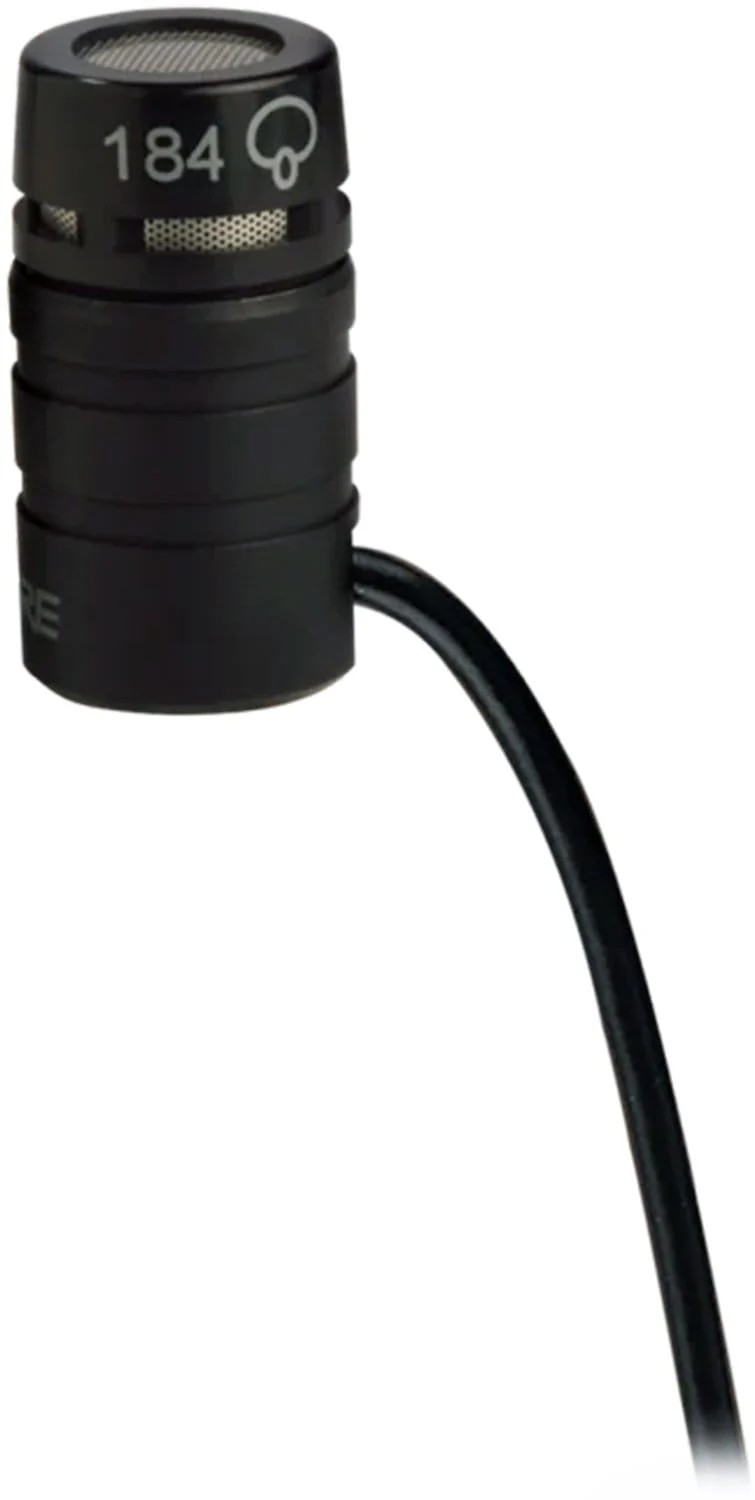

Shure WL184SHU Supercardiod Lavalier Mic w/ TA4F
Shure WL184SHU Supercardiod Lavalier Mic with TA4F
WL184 is a lavalier electret condenser microphones for use with a wireless bodypack transmitter. Each microphone has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin connector (TA4F). The furnished tie clip can be rotated in 90° intervals for placement flexibility.
Features:
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges that provide an optimal choice for each application
- Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
- Supplied snap-fit foam windscreen that controls breath noise and stays on securely
- Supplied dual tie clip holds two microphones for dual miking applications
Specifications:
- Type: Condenser (electret bias)
- Frequency Response: 50 to 17,000 Hz
- Output Impedance: 1800 Ω
- Sensitivity: -44.5 dBV/Pa
- Maximum SPL: 129.5 dB SPL
- Self Noise (A-Weighted): 27.0 dB SPL
- Dynamic Range: 102.5 dB
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
- Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
