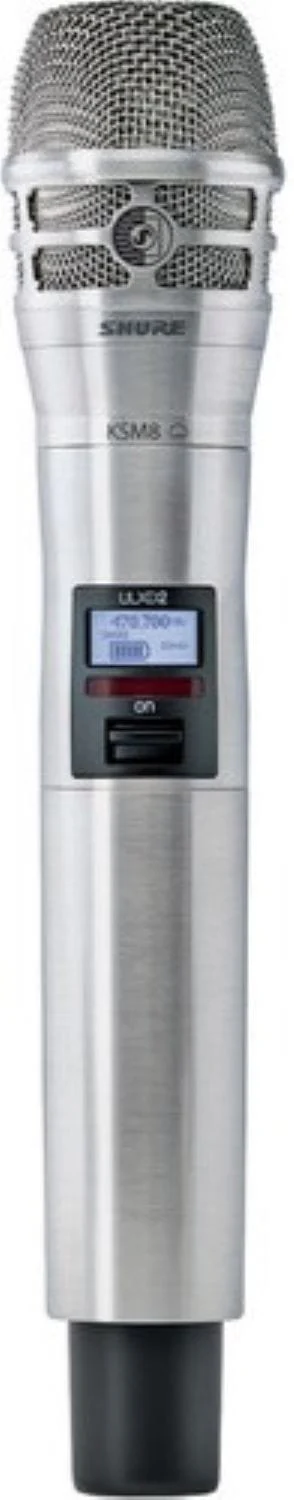

Shure ULXD2/K8N Digital Handheld Transmitter with KSM8 Capsule - X52 Band
Shure ULXD2/K8N Digital Handheld Transmitter with KSM8 Capsule - X52 Band
The Shure ULXD2/K8N is a handheld wireless microphone transmitter. With an interchangeable KSM8 microphone cartridge, the ULXD2/K8N delivers uncompromising audio quality and RF performance, and AES 256-bit encryption for secure transmission.
Features:
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Optional Shure SB900A lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
Specifications:
- RF Frequency Band: X52 - 902 to 928 MHz
- RF Bandwidth: 26 MHz
- Frequency Step Size: 25 kHz
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 0.25 / 10 / 20 mW (Switchable)
- Audio I/O: No
- Muting: Off/On Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1x Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)
- Display & Indicators: 1x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.9 x 2" / 278 x 51 mm
- Weight: 12.3 oz / 348 g
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 40 Hz to 16 kHz
- Sensitivity: -51 dBV/Pa at 1 kHz
- Dynamic Range:
- Hypercardioid: 130.8 dB
- Wide-Angle Cardioid: 131.3 dB
- Packaging Info:
- Package Weight: 1.6 lb
- Box Dimensions (LxWxH): 12.6 x 4.9 x 3.4"
