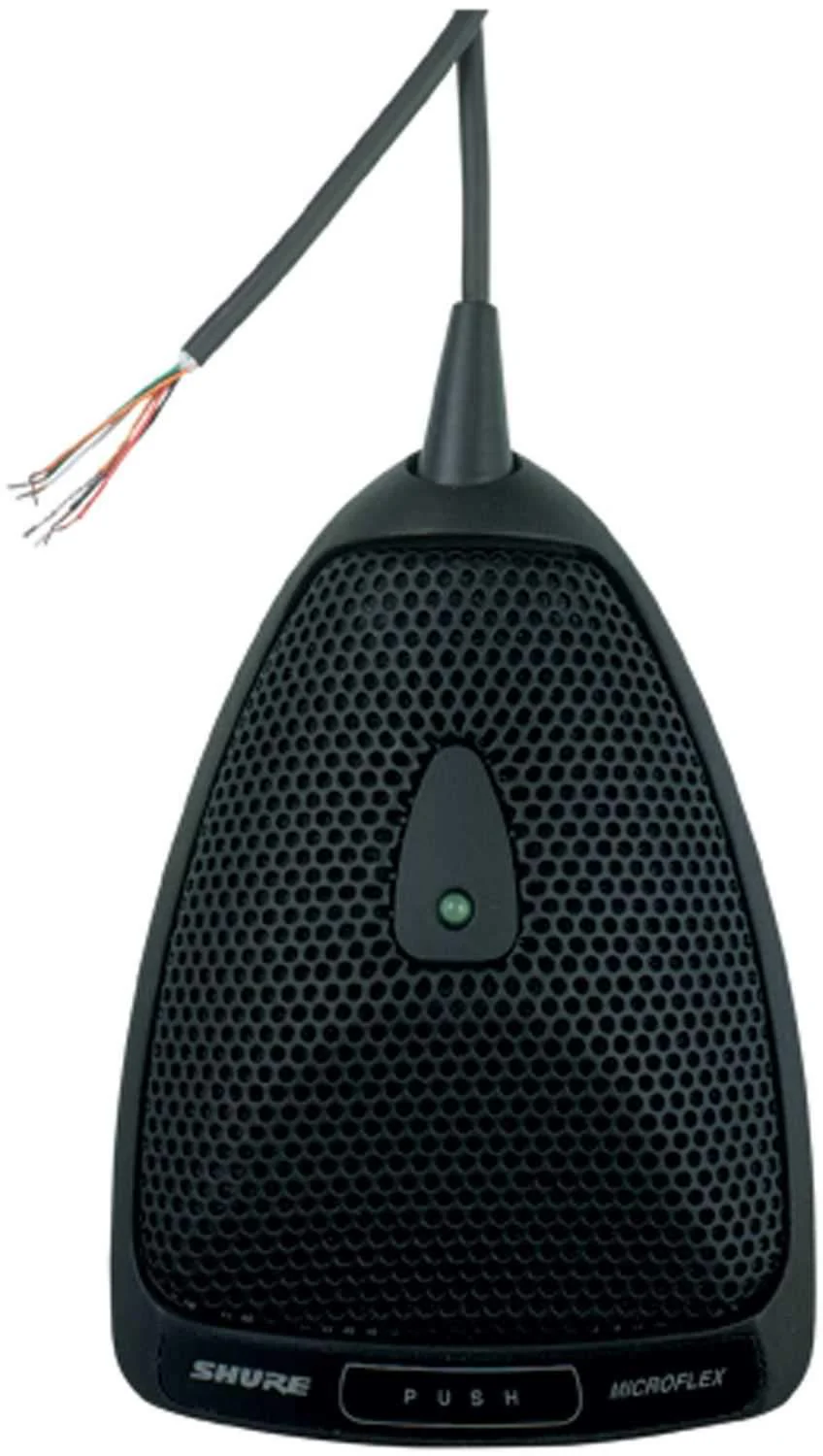

Shure MX392O Omnidirectional Boundary Mic with Preamp

Microflex Boundary Microphones.

Low profile, professional boundary microphones with interchangeable cartridges. Built-in preamp.

MX392 and MX393 Microflex® Wired Boundary Microphones from Shure are equipped with features like programmable, silent membrane switches, logic inputs and outputs, and green LED indicators. The high-quality solution for a range of applications such as altars, boardrooms and distance learning centers, Microflex Boundary microphones feature interchangeable condenser cartridges.

• MX392 & MX392BE: Surface-mount mic; LED logic input/switch logic output terminals, screw terminal connections, attached unterminated cable; Bottom Exit option available
• MX393: Surface-mount mic; LED logic input/switch logic output terminals, screw terminal connections, detachable cable with XLR output connector

Features

• Flat frequency response across the vocal range for uncolored sound
• Interchangeable cardioid, supercardioid, and omnidirectional cartridges that provide optimal choice for each application
• Sleek, low-profile design for unobtrusive appearance
• Balanced, transformerless output for increased immunity to noise over long cable runs
• Programmable membrane on/off switch plus LED on/off indicator

Specifications

• Frequency Response: Cardioid (MX392/C, MX393/C), Supercardioid (MX392/S, MX393/S), Omnidirectional (MX392/O, MX393/O)
• lmpedance: EIA Rated at 150 ohms (180 ohms actual)
• Output Level: -6 dBV (0.5 V)
• Phantom power required?: 11 to 52 Vdc phantom, 2.0 mA current consumption
