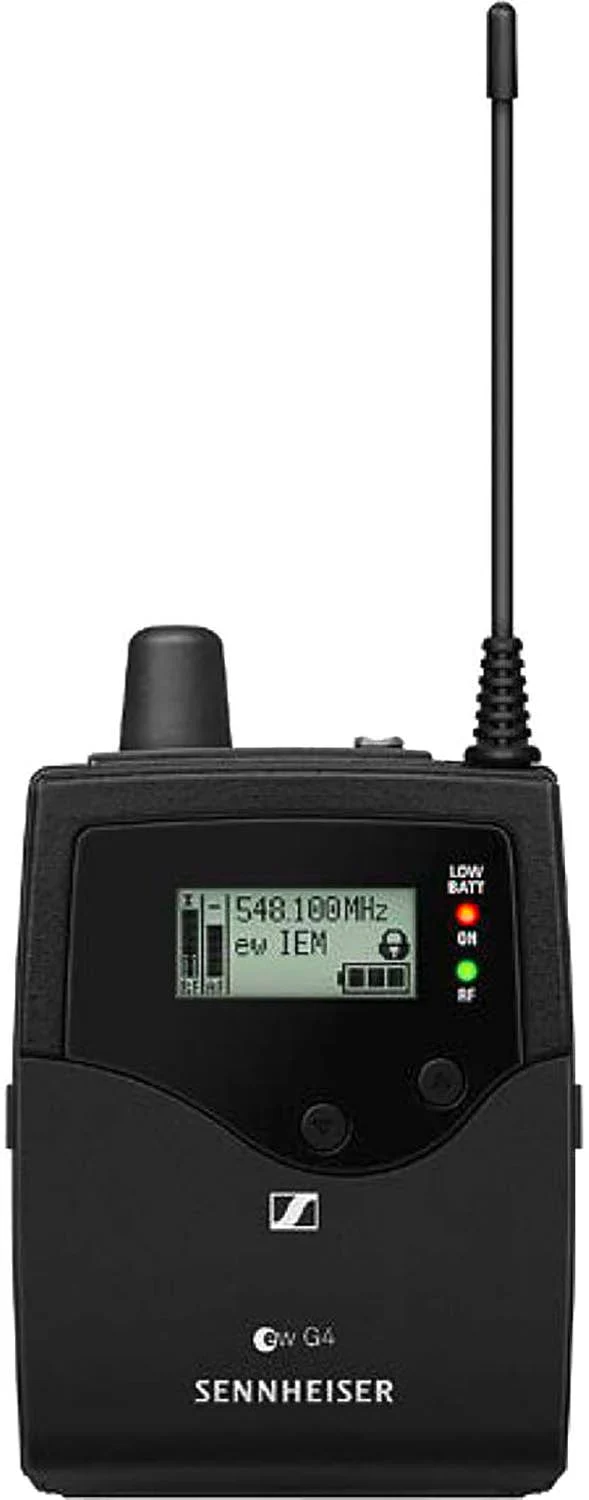

Sennheiser EK IEM G4 Evolution Wireless Stereo Bodypack Receiver A
Sennheiser EK IEM G4 Stereo Bodypack Receiver A
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
What's in the box?- EK IEM G4-A stereo receiver
- 2 AA batteries
- IE 4 earphones
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for flexible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 50 mW) depending on country regulations
Specifications:
- Frequency range: 516 - 558 MHz
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ? 0.9 %
- Weight: (incl. batteries) approx. 125 g
- Signal-to-noise ratio: approx. 90 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: approx. 4 to 6 hours (depending on volume level)
- Modulation Wideband: FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption at nominal voltage: approx. 140 mA with transmitter switched off: ? 25 µA
- Adjacent channel rejection: Typically ? 65 dB
- Audio-Output-Power: 2 x 100 mW at 32 ?
- Intermodulation attenuation: Typically ? 70 dB
- Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
- RF sensitivity: < 4 ?V, typ. 1.6 ?V for 52 dBA rms S/N
- Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
- Bass Boost: +8 dB at 80 kHz
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ? 80 dB
