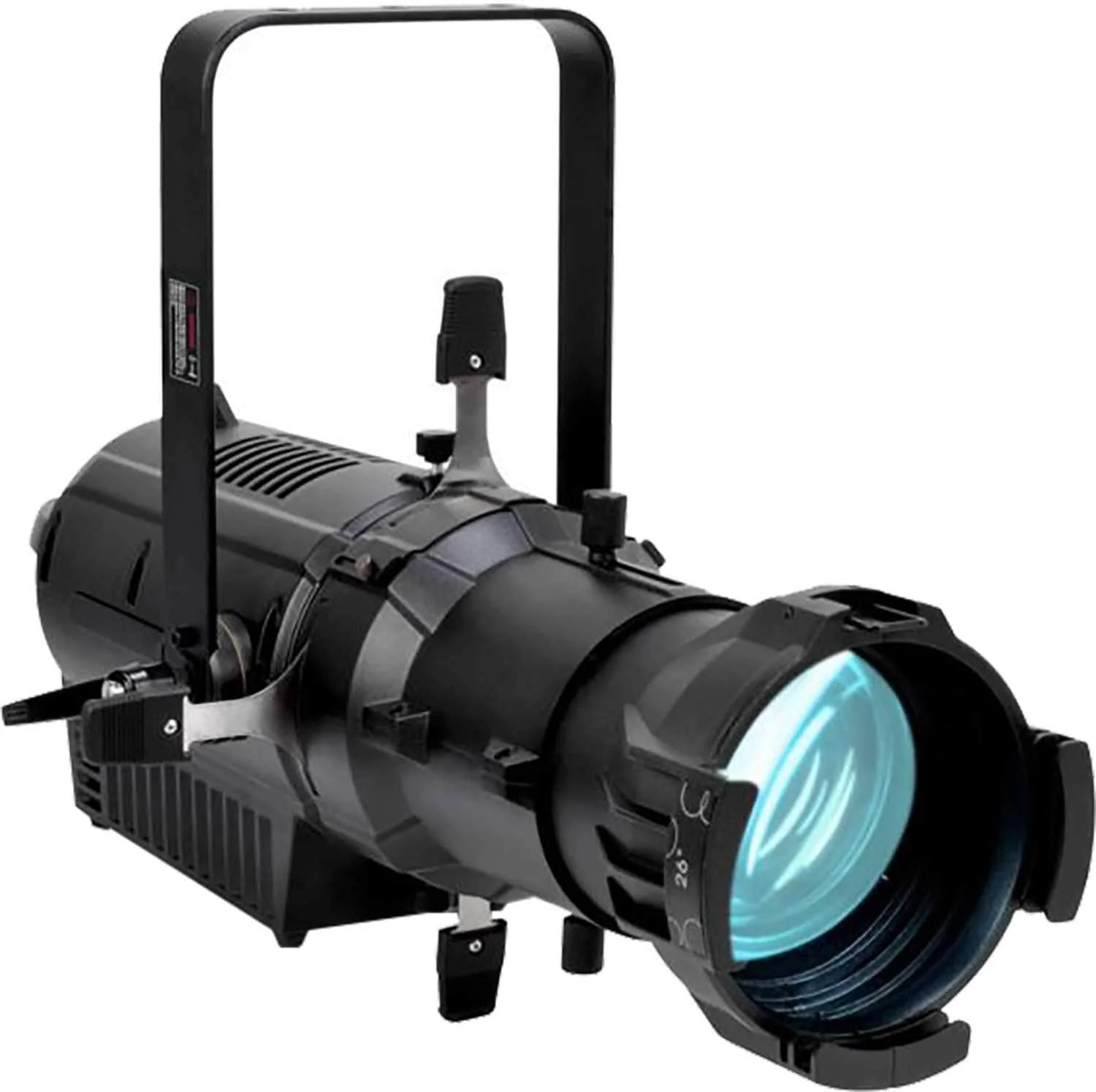

Elation CW Profile HP LED Ellipsoidal Fixture (Engine Only)

The CW Profile HP™ ellipsoidal features a High Powered 130W Cool White >90CRI 5,600K LED engine producing 11,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and Film, 3/5pin DMX and powerCON True1 in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Features:

• High Power 130W Cool White 5,600K LED Engine
• >90CRI | 11,000+ Total Lumens
• Interchangeable Lens Options (19°, 26°, 36°, 50°) (not included)
• (4) Blade Manual Framing Shutters
• Supports B Size Metal or HT Transparency Gobos (not included)
• DMX Controlled Electronic Strobe and 16bit Dimming
• Selectable Dimming Curve Modes
• Flicker Free Operation for TV and Film
• Adjustable LED Refresh Rate and Gamma Brightness
• Quiet Fan Cooling

Specifications:

Source

• High Power 130W Cool White 5,600K LED Engine
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data

• >90CRI | 11,000+ Total Lumens

Effects

• Electronic Strobe
• Variable Dimming Curve Modes

Gobos

• Supports "B" Size Metal, HT Transparency Gobos**

**Gobo Holder Not Included

Control / Connections

• 2 DMX Channel Modes (4 total channels)
• 4 Button Control Panel
• LED Menu Display
• 3/5pin DMX In/Out
• powerCON True 1 In/Out
• With Wired Digital Communication Network

Size / Weight

• Length: 24.3" (618mm)
• Width 12.2" (310mm)
• Vertical Height: 15.7" (398mm)
• Weight: 21.0 lbs. (9.5kg)

Electrical / Thermal

• Quiet Fan Cooling
• AC 100-240V - 50-60Hz
• 160W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)

Approvals / Ratings

• CE | cETLus | IP20

Firmware Updates

• Current Version: V1.1.4
