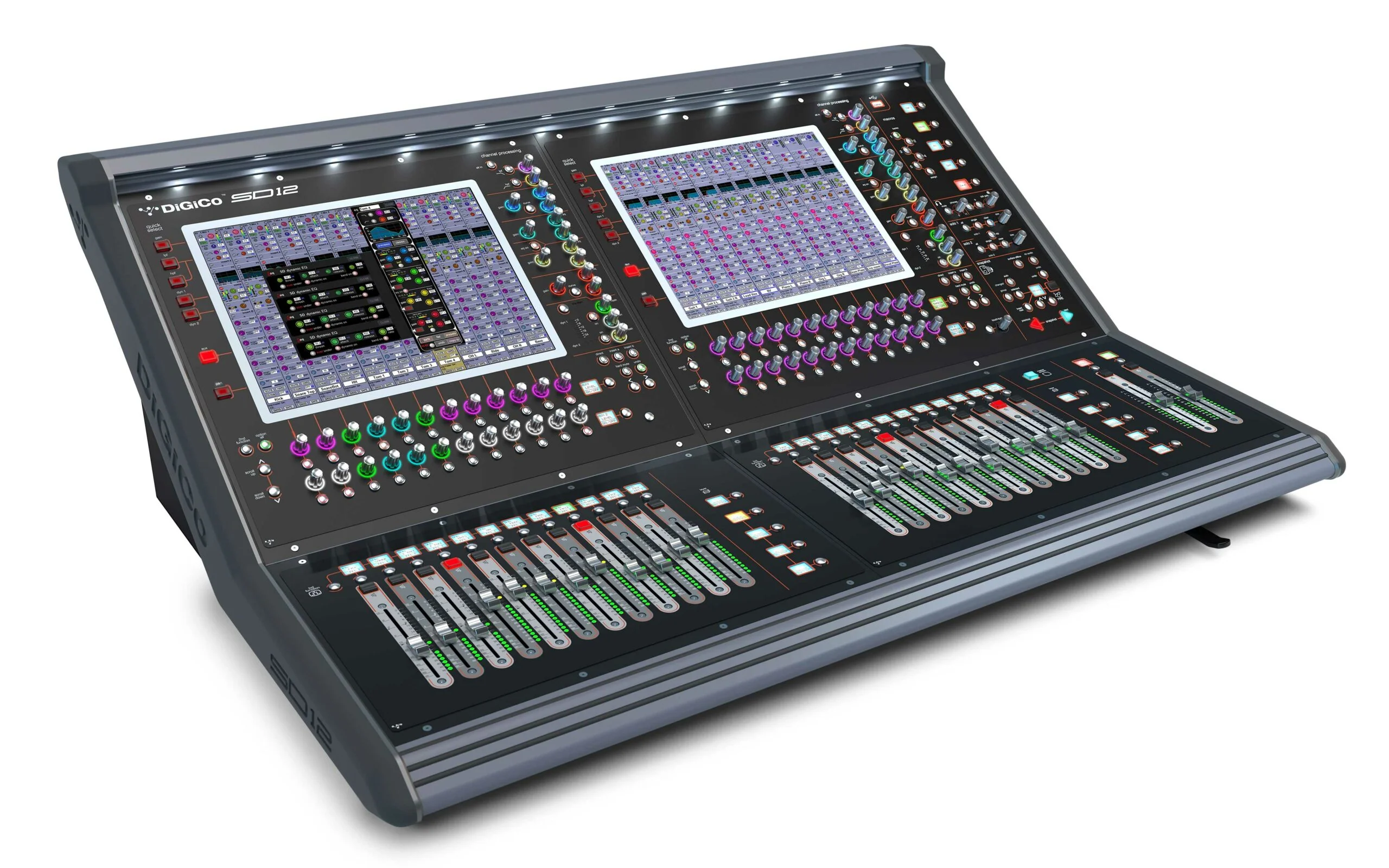

DiGiCo SD12 Digital Mixing Console

The SD12 delivers audio mixing through its 72 channels at up to 96kHz sampling rates. It features integrated recording capabilities, powered by the latest Super FPGA technology and Core 2 software.

The console provides an overview through its new DVI display output alongside dual 15-inch touchscreens for enhanced control.

The SD12 is equipped with two assignable master faders and advanced surface connectivity via optional DMI cards.

The console supports various configurations including MADI, One Multi-Mode Optics HMA and One-Multi-Mode Optics ST.

The DiGiCo SD12 Digital Mixing Console is also available in the SD12T or SD12 96 versions.

Features:

Consoles	SD12	SD12T	SD12 96
Input Channels	72	96	96
Aux / Sub-Group Busses	36	48	48
LR/LCR Master Bus	X	X	X
Full Processing Matrix	12 x 8	12 x 8	12 x 8
Dynamic Equalisers	119	155	155
Sample Rate	48/96 kHz	48/96 kHz	48/96 kHz

Specifications:

• Faders: 26 x 100mm touch-sensitive, motorised
• Screens: 2 x 15” LCD high-resolution touch screens
• Input Channels: 72
• Busses: 36 plus masters Aux / Group busses with full processing Mono / Stereo / LCR
• Matrix: 12 Input / 8 Outputs with full processing
• Control Groups: 12, selectable for VCA-style, Moving fader, Mute Group
• Graphic EQ: 16 x 32-band, Gain +/- 12dB
• Internal FX: 12 stereo effects comprising of reverbs and delay/chorus/pitch/enhancer
• Local I/O: 8 x mic/line I/O, 8 x AES I/O
• MADI interface: 2 Interfaces, BNC connectivity
• Optic interface: Optional
• Sampling rates: 48kHz / 96kHz
• GPIO: 2 x DSub37
• DMI: 2 x DiGiCo Multichannel Interface
• Ext Sync: Wordclock, MADI, Optics
• SD12 Dimensions: 1124 mm (w) x 795 mm (d) x 389 mm (h)
• SD12 Weight: 42Kg / 96lbs (130Kg / 287lbs with optional flightcase)
• SD12 Flightcase: 1270 mm (w) x 570 mm (d) x 1150 mm (h)
• SD12 Power Requirements: 90V-260V, 50-60Hz, 150VA. (140W)

I/O Rack:

• DiGiCo SD-Rack

• DiGiCo SD-MiNi Rack Stage Box

• DiGiCo SD-Nano Rack

• DiGiCo D-Rack

• DiGiCo D2-Rack

• DiGiCo Purple Box Convertor

• DiGiCo Orange Box I/O Rack

• DiGiCo Little Red USB Audio Interface

• DiGiCo Little Blue Box USB Audio Interface

• DiGiCo UB MADI USB Audio Interface

• DiGiCo Waves SoundGrid I/O Rack
• DiGiCo DQ-Rack
• DiGiCo MQ-Rack
