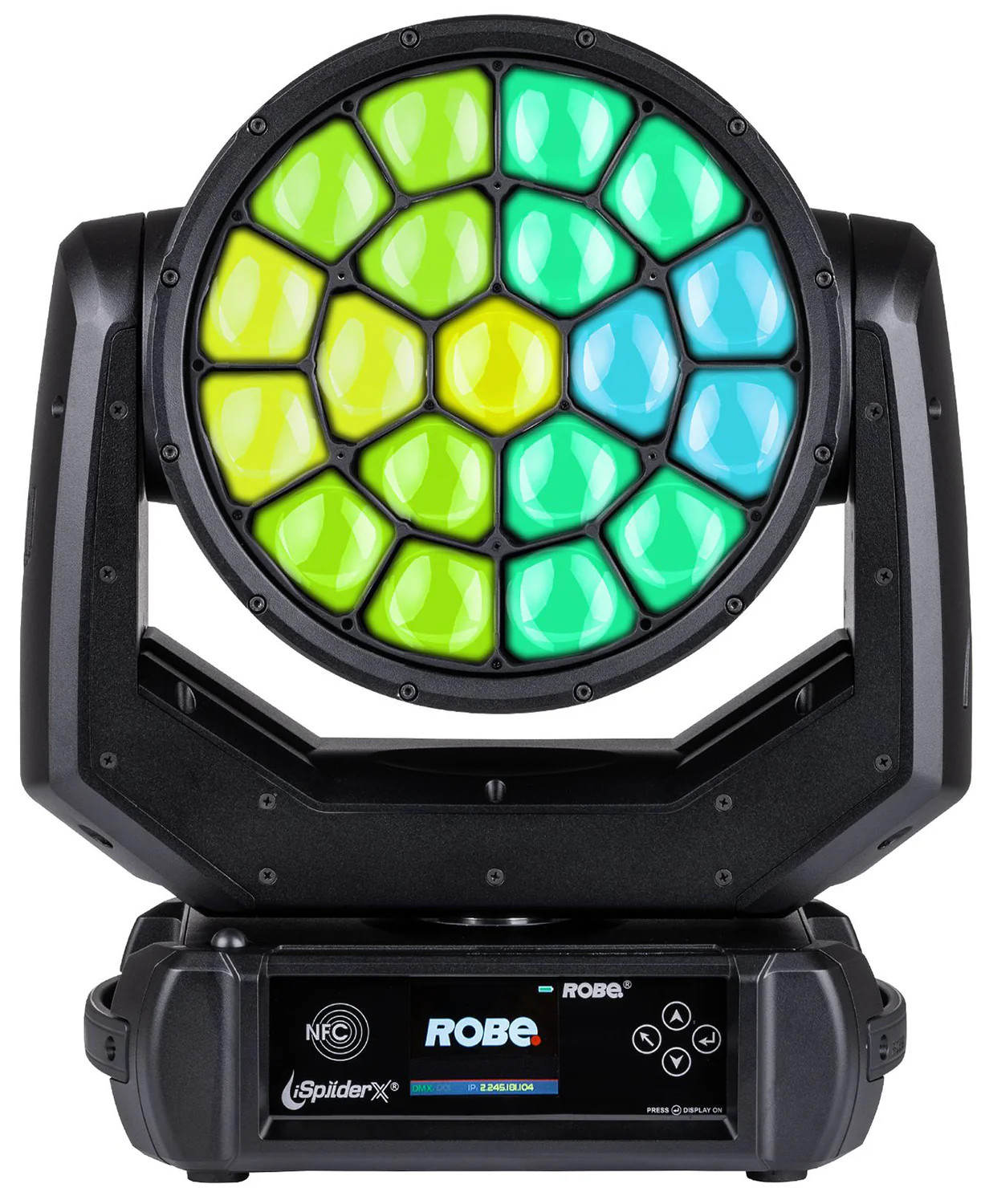

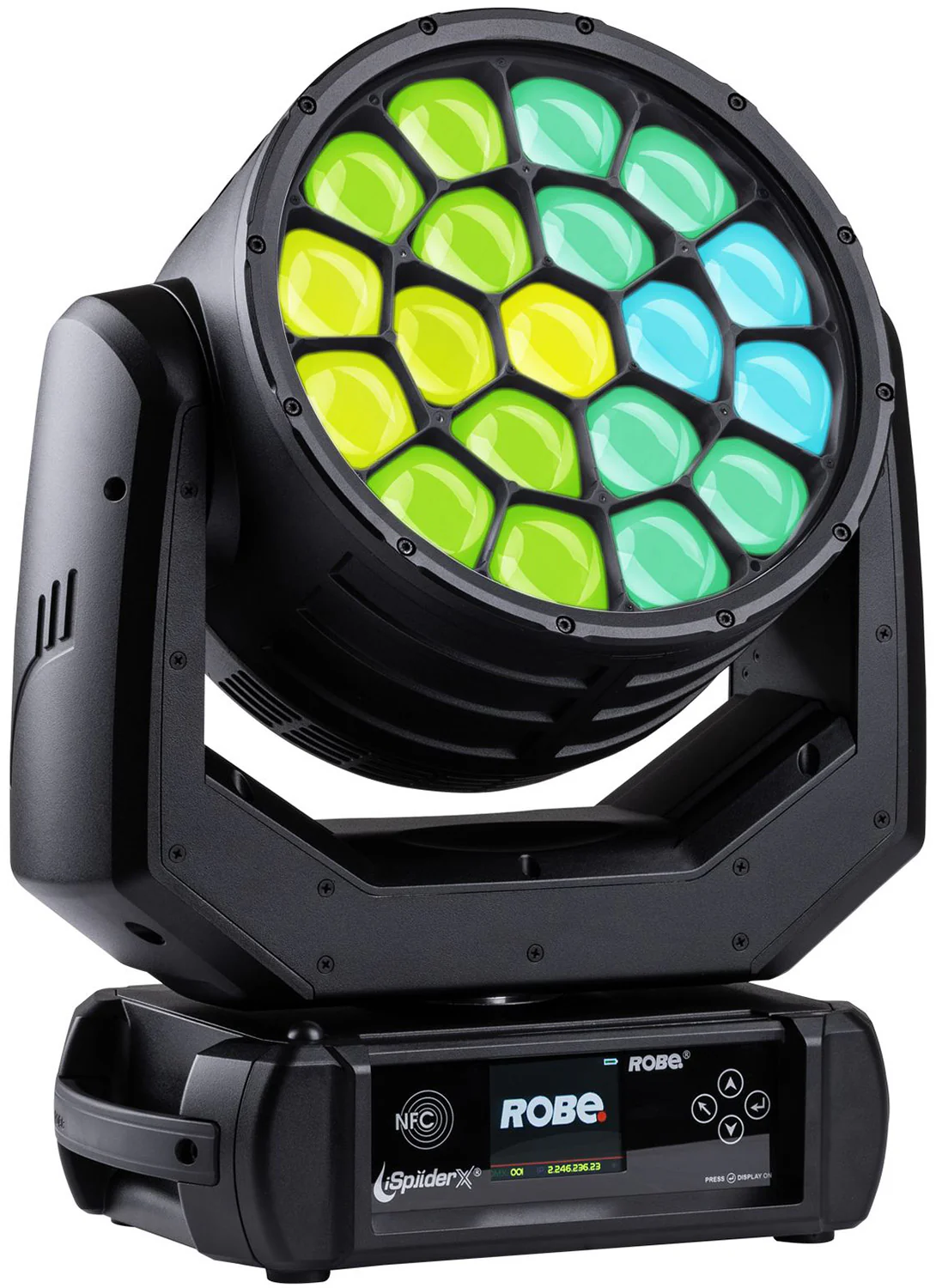

Robe iSpiiderX 1x 60W RGBW and 18x 40W RGBW LED multichips

Introducing the iSpiiderX®, a pinnacle of cutting-edge design, construction, and protection technology. Evolving from the esteemed legacy of its predecessor, the original iSpiider®, this high-performance fixture boasts an IP65 rating, ensuring resilience against any weather conditions.

Tailored for festivals, concerts, outdoor events, and environments prone to inclement weather, the iSpiiderX® combines state-of-the-art construction materials with a minimalist design, weighing a mere 19 kg. It features the leading IP65-rated active RAINS™ protection system for unparalleled durability.

Equipped with 18 × 40-Watt RGBW and 1 × 60-Watt LED multichip sources, the iSpiiderX® maintains the core specifications of the original Spiider®. Its 12.5:1 zoom optical system delivers a versatile range from a tight 4° Beam to a wide 50° Wash, retaining full pixel mapping capability.

The hallmark of the iSpiiderX® is the patented MCFE™ - Multi-Coloured Flower Effect, powered by the centre 60W RGBW LED multichip. This feature produces vivid, rotating multi-coloured spikes of light, enhancing the visual spectacle of any performance.

To facilitate maintenance and ensure a dust-free environment for the optics, the iSpiiderX® introduces the patented EasyClean™ lens sandwich system. This innovative design simplifies lens removal and cleaning, while the non-reflective front lens minimizes distractions.

For seamless programming, the onboard DataSwatch™ colour library offers 66 premixed colours and tones, including whites. Advanced L3™ dimming software ensures imperceptible fades to black, enhancing the overall lighting experience.

Engineered for quiet operation, the iSpiiderX® features advanced cooling systems and super smooth zoom stepper motors. With tungsten lamp emulation and variable CTO from 2.700K to 8.000K, it excels in noise-sensitive environments.

The Cpulse™ - Pulse Width Modulation control system eliminates on-screen camera flicker, making the iSpiiderX® compatible with advanced camera systems.

The onboard RAINS™ (Robe Automatic Ingress Neutralization System) actively monitors humidity, temperature, and pressure, ensuring peak performance by automatically removing moisture detected within the fixture thus protecting the internal micro-climate.

Designed to operate in extreme cold, the iSpiiderX® features POLAR+™ technology, maintaining internal temperature levels down to minus 50 degrees centigrade with minimal power consumption.

The luminaire conducts an on-call self-pressure test in under 3 minutes, ensuring maximum protection by detecting errors in gasket placement and cover tightening.

Utilizing NFC (Near-Field Communication) technology, the Robe Com app provides access to setup, diagnostics, and performance features directly from mobile devices. The REAP™ (Robe Ethernet Access Portal) facilitates remote monitoring of fixture performance over Ethernet Networks.

Supporting all control protocols, including DMX control desks, media servers via sACN, and Kling-Net, the iSpiiderX® delivers dynamic video effects through pixel mapping. CRMX wireless DMX and the Epass™ Ethernet pass-through switch ensures maintained network connectivity.

The iSpiiderX® is part of the iSeries, the new standard in outdoor lighting, combining cutting-edge technology with robust construction and unparalleled performance.

Features

Light source
- 1x 60W RGBW and 18x 40W RGBW LED multichips
Light output
- 13.100lm, 49.000 lx @ 5m

Zoom range
- 4° - 50°

Effects
- pixel control, MCFE™ - Multi-Coloured Flower Effects (patented), virtual colour wheel, tungsten lamp effect, preprogrammed pixel effects

Technical Specification

Source

Light source type: 1x 60W RGBW and 18 x 40W RGBW LED multichips
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system

Robe’s proprietary optical design
High-efficiency zoom optical system, ratio 12,5:1
Zoom range: 4° - 50°
Fixture total lumen output:
- 13 100 lm (integrating sphere)
- 10.500 lm (goniophotometer)
Illuminance: 49.000 lx @ 5 m
RLCT™ Innovative lens coating technology
EasyClean™ - newly designed and patented lens sandwich system for easy cleaning and time saving maintenance of the lenses

Dynamic Effects and Features

Colour mixing mode RGBW or CMY
Individual control of each RGBW pixel
White light: Variable CCT 2.700K - 8.000K
DataSwatch™ filters: pre-programmed 66 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K
Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)
Colour rainbow effect with variable speed
MCFE™ - Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (Patented)
Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
POLAR+™ for power saving and instant operation in extremely cold weather conditions

Control and programming

Setting & Addressing: ROBE Navigation System 3 (RNS3)
Display: QVGA Robe screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN, Kling-Net
Wireless CRMX™ technology from Lumen Radio
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
REAP™ - Robe Ethernet Access Portal
RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance
DMX Protocol modes: 10
Control channels: 49, 27, 33, 90, 27, 47, 91, 110, 104, 123
Pan & Tilt resolution: 16 bit
R,G,B,W colour mixing: 8 or 16 bit (internal 18 bit)
Zoom: 8 bit
Dimmer: 8 or 16 bit (internal 18 bit)

Movement

Pan movement: 540°
Tilt movement: 220°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction

Thermal specification

Maximum ambient temperature: 50°C (122°F)
Maximum surface temperature: 80°C (176°F)
Minimum operating temperature: -50°C (-58°F)
Total heat dissipation: max. 1614 BTU/h (calculated)

Electrical specification and connections

Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 660 W
Power connector in: IP65 Neutrik powerCON TRUE1
DMX and RDM data in/out: IP65 Locking 5-pin XLR connectors
Embedded Ethernet switch 10/100 Mbps: 1 x in / 1 x out
Ethernet port in: 2 x IP65 RJ45 connector

Approvals

CE Compliant
cETLus Compliant (pending)

Mechanical specification

Height:
- 460 mm (18.11”) – head in vertical position
- 505 mm (19.88”) – head in horizontal position

Width: 424 mm (16.69”)
Depth: 226 mm (8.89”)
Weight: 19 kg (41,9 lbs)
Ingress protection rating: IP65

Rigging

Mounting positions: vertically
Universal operating position
Mounting points: 2 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4-turn quick locks
Safety cable attachment point
Tilt transport lock

Included items

User Manual
Omega Adaptor CL-regular 2 pcs
Power cord including powerCON TRUE1 In connector:
- US:13052277-01
- EU:13052276-01

Optional accessories

Doughty Trigger Clamp: 17030386
Safety wire 36 kg: 99011963
Single Top Loader Case: 10120352
Dual Top Loader Case: 10120353
Quad Top Loader Case: 10120354
Foam Shell: 20020494

Legal

iSpiiderX® is Registered Trademark of Robe lighting s. r. o.
iSpiiderX® is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
