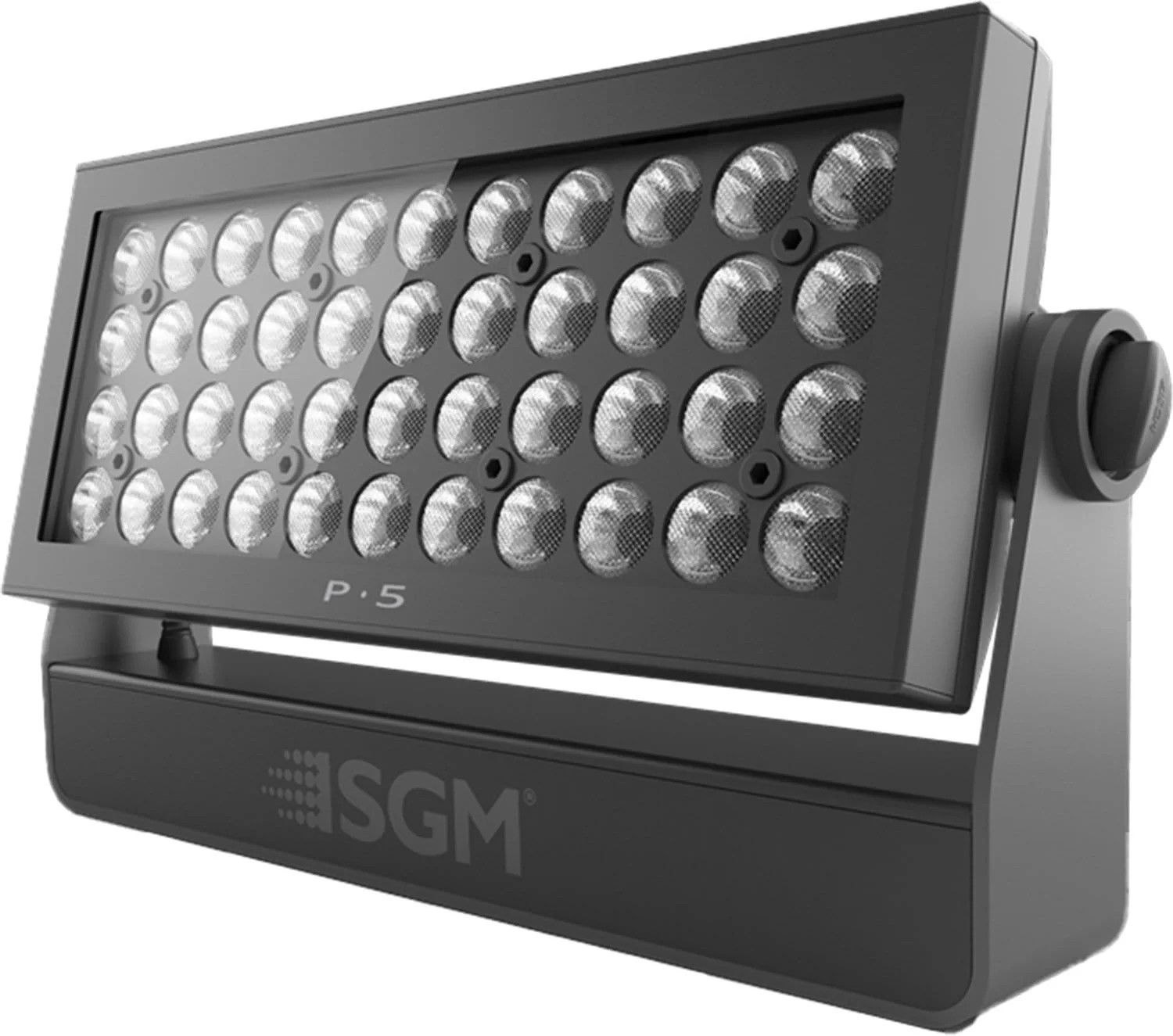

SGM SGMP521 LED RGBW 10 Watt IP65 Stroboscope with lens

FOR USED ONLY - Available from Mid-October 2026

The P-5 is the most well-known and reputed IP65 LED wash in the lighting industry. It has created new standards of color consistency, even coverage, light output, and smooth dynamic color balance. The P-5 employs 16-bit dimming performance with no color shift, it is completely upgradeable through firmware updates, and it offers a full variety of beam angles for medium-to-longer throw applications via precise, interchangeable lenses. Its unique light projection and color mixing has made the P-5 the standard reference for lighting designers all around the world.

Features:

High-performance IP65 RGBW LED light source
43º, 21º, and 15º interchangeable lenses
20031 lumens in W
DMX, RDM, and wireless control
2000K - 10000K CTC control
Accurate 16-bit dimming performance
Practically maintenance-free
Flicker-free / Programmable scenes

Specifications

Optical Data
- LED expected lifetime: 50,000 hours
- Lightsource: 44 x high-power 10W RGBW LEDs
- Native lens options:
  - 15°
  - 21°
  - 43°
Photometric
- Average CRI (CTC): 86
- Color temperature range: 2000K - 10000K
- Efficacy: 44 lm/W
- Light output all LEDs on: 20031 lm
- Light output blue: 1353 lm
- Light output green: 5806 lm
- Light output red: 4725 lm
- Lumen per kilogram: 2251 lm / Kg
- Lux @ 10m: 1993 lux
- Lux @ 3m: 22142 lux
- Lux @ 5m: 7971 lux
- Native beam angle(s):
  - 14° (with 15° lens)
  - 26° (with 21° lens)
  - 35° (with 43° lens)
- Native field angle(s):
  - 76° (with 43° lens)
  - 55° (with 21° lens)
  - 30° (with 15° lens)
Physical
- Color options:
  - Black - RAL 9004
  - Custom color - Any RAL
  - White - RAL 9010
- Effective Projected Area: 1.72 Square ft
- IP class: IP65
- Lens material: PE and tempered glass front
- Material: Aluminum
- Net dimensions: 497 x 268 x 122 mm
- Net dimensions inches: 19.6 x 10.6 x 4.8 inches
- Net weight: 8.9 kg (19.6 lbs.)
Features
- Color calibration: SGM proprietary, full color calibration
- Dimming: 2 Smooth fade in, display selectable curves: gamma corrected, and linear
- Filters: Optional external spread angle filters (requires Accessory Holder)
- Other: LED frequency control, display selectable
- Strobe: Ultra-high-speed strobe effects
- Tilt: 0 - 190°
Electrical
- Electrical protection: Overload protection
- Input voltage, absolute max. rating: 190 - 264 VAC; 50 / 60 Hz
- Input voltage, nominal: 208 - 240 VAC; 50 / 60 Hz
- Max inrush current 230VAC: 45 A
- Max power consumption: 450 W
- Power factor: 0.98 PF (230 V)
- Power Supply Unit: Auto-ranging electronic switch-mode
- Standby power consumption: 8 W
Programming and Control
- 16-bit control: Dimmer, Red, Green, Blue, White
- Cabled DMX: 5 pin XLR input/output
- DMX channels: 3, 4, 6, 8, 9, or 10
- DMX modes: 7
- Protocol:
  - USITT DMX512A
  - Wireless DMX (LumenRadio)
  - RDM ANSI E1.20
- Setting and addressing:
  - OLED graphical display / 4 buttons
  - RDM ANSI E1.20
  - RFID
  - Standalone mode
- Standalone mode:
  - Quick Color
  - Standalone mode programmable via RFID
  - Up to 24 programmable scenes
- Wireless DMX: Lumen Radio with RDM
Connections
- DMX data in/out: 2 IP65 XLR 5-pin cables 0.5m (permanently wired)
- Power: Power cable 1 meter with bare ends (permanently wired)
Installation
- Mounting point: 2 x 2 quarter-turn locking points for one or two Omega brackets
- Orientation: Any
- Rigging possibilities: Floor stand (included) or hanging (Omega clamps included)
- Safety features:
- Bottom mount for safety wire
- Minimum distance to combustible materials: 0.3 meter (11 in).
Thermal
- Cooling: Active, Forced Air, Temperature-regulated
- Humidity (max.): 98 %
- Temperature range, operating: -40°C to 50°C
- Temperature range, start-up: -20°C to 50°C
- Temperature range, storage: -40°C to 80°C
- Thermal protection: Automatic overtemperature protection
- Total heat dissipation, max power: 1535.4 BTU per hour
- Total heat dissipation, standby: 27.3 BTU per hour

Effect Lighting

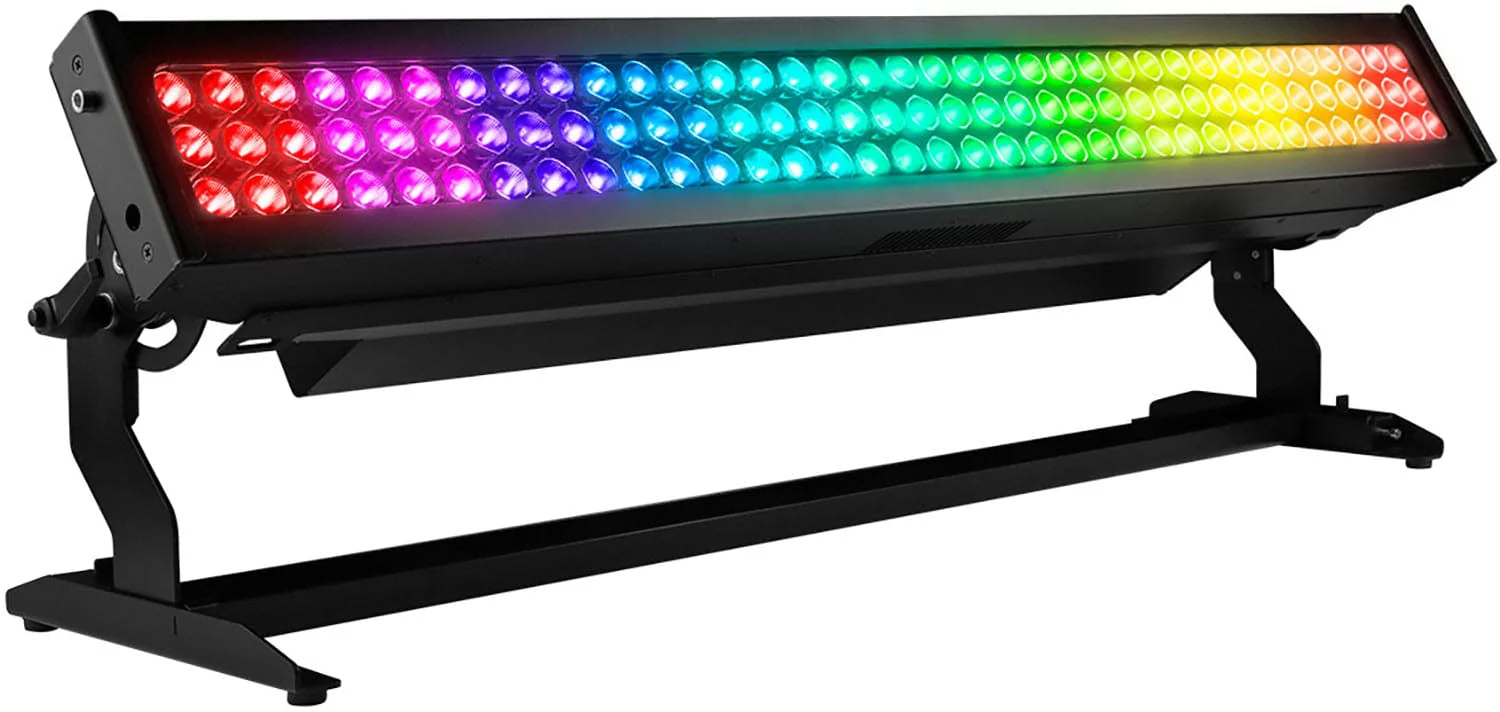

Solaris Flare LR Q+ RGBW LED Strobe

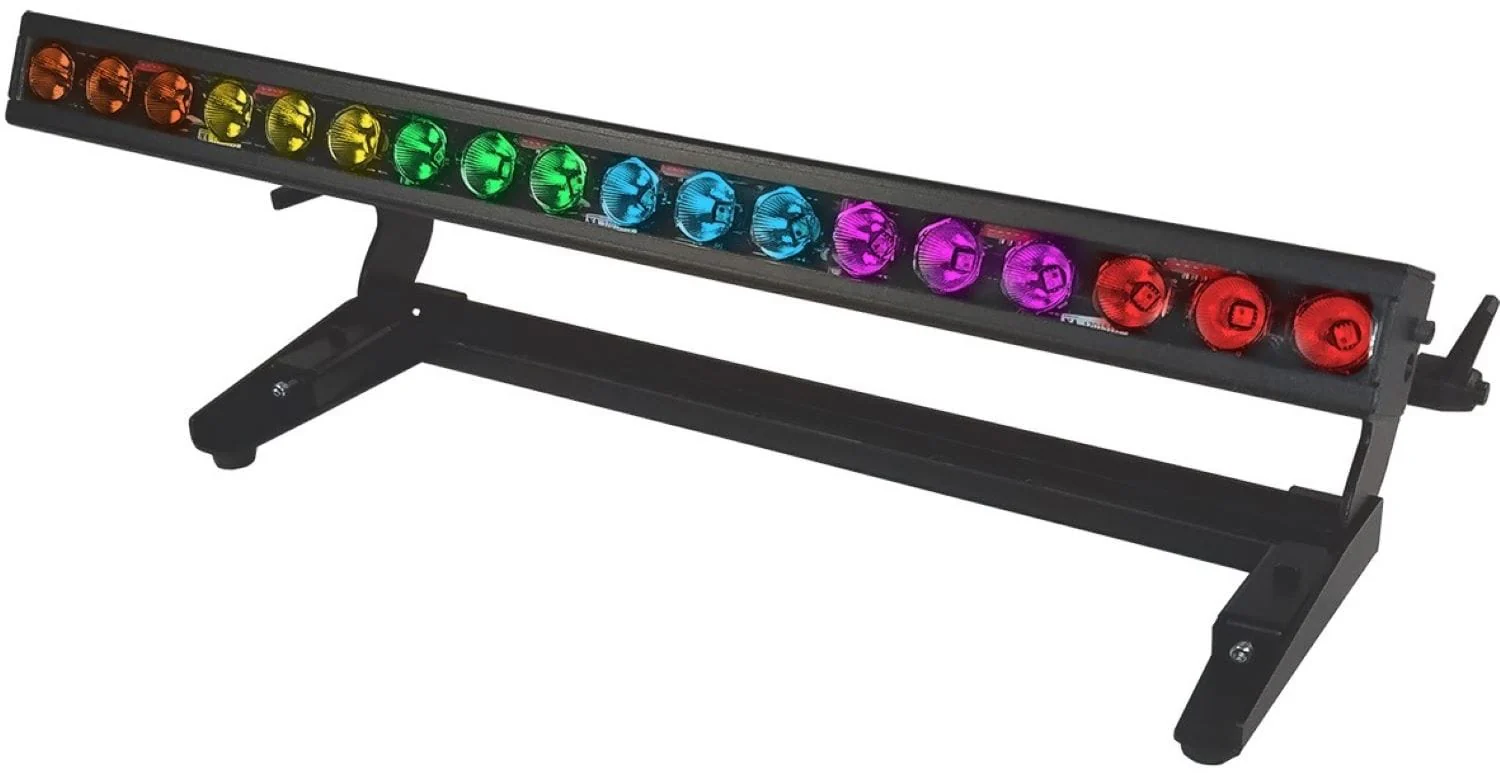

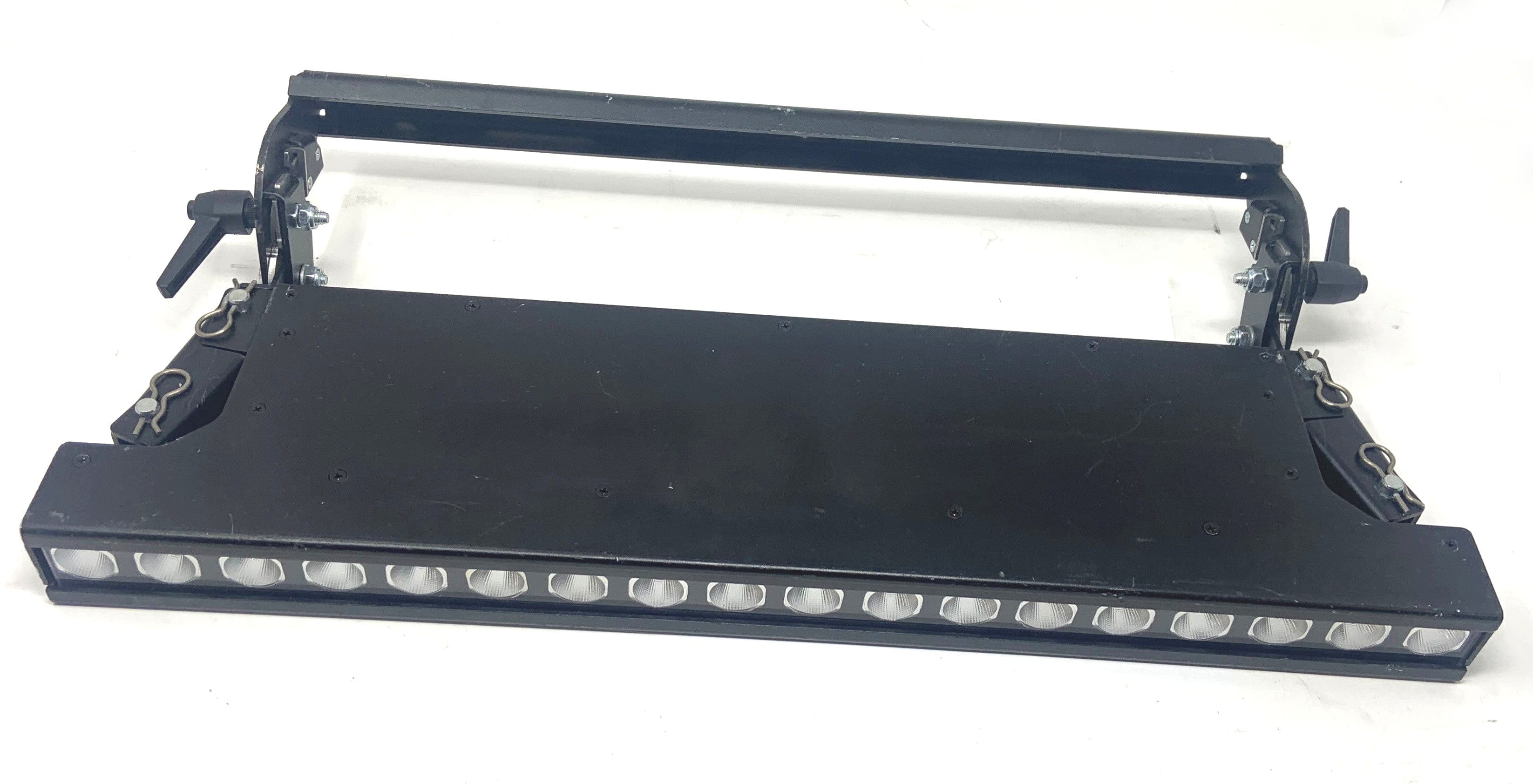

Solaris Flare RayZR RGBW Linear LED Strobe 50cm

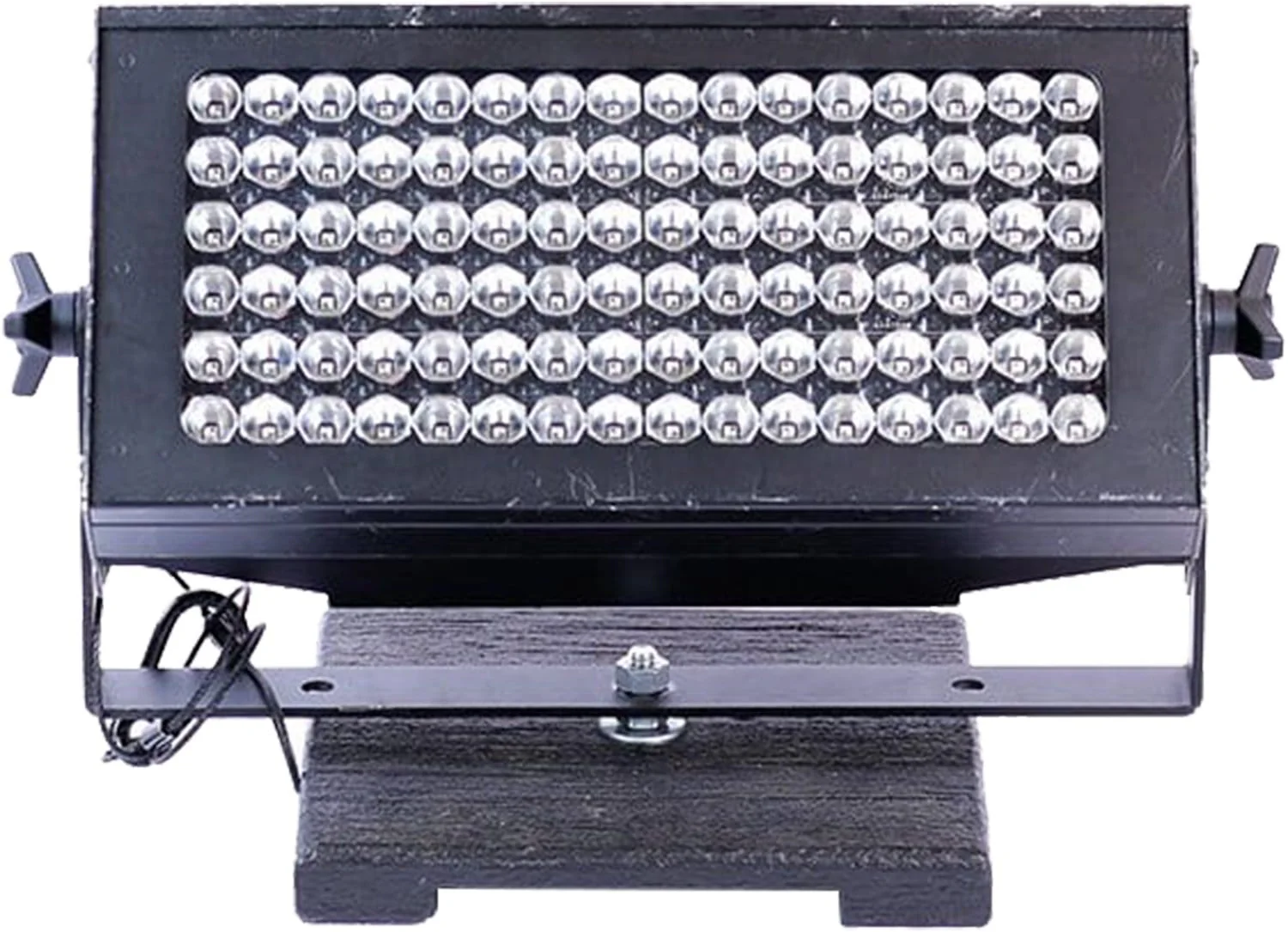

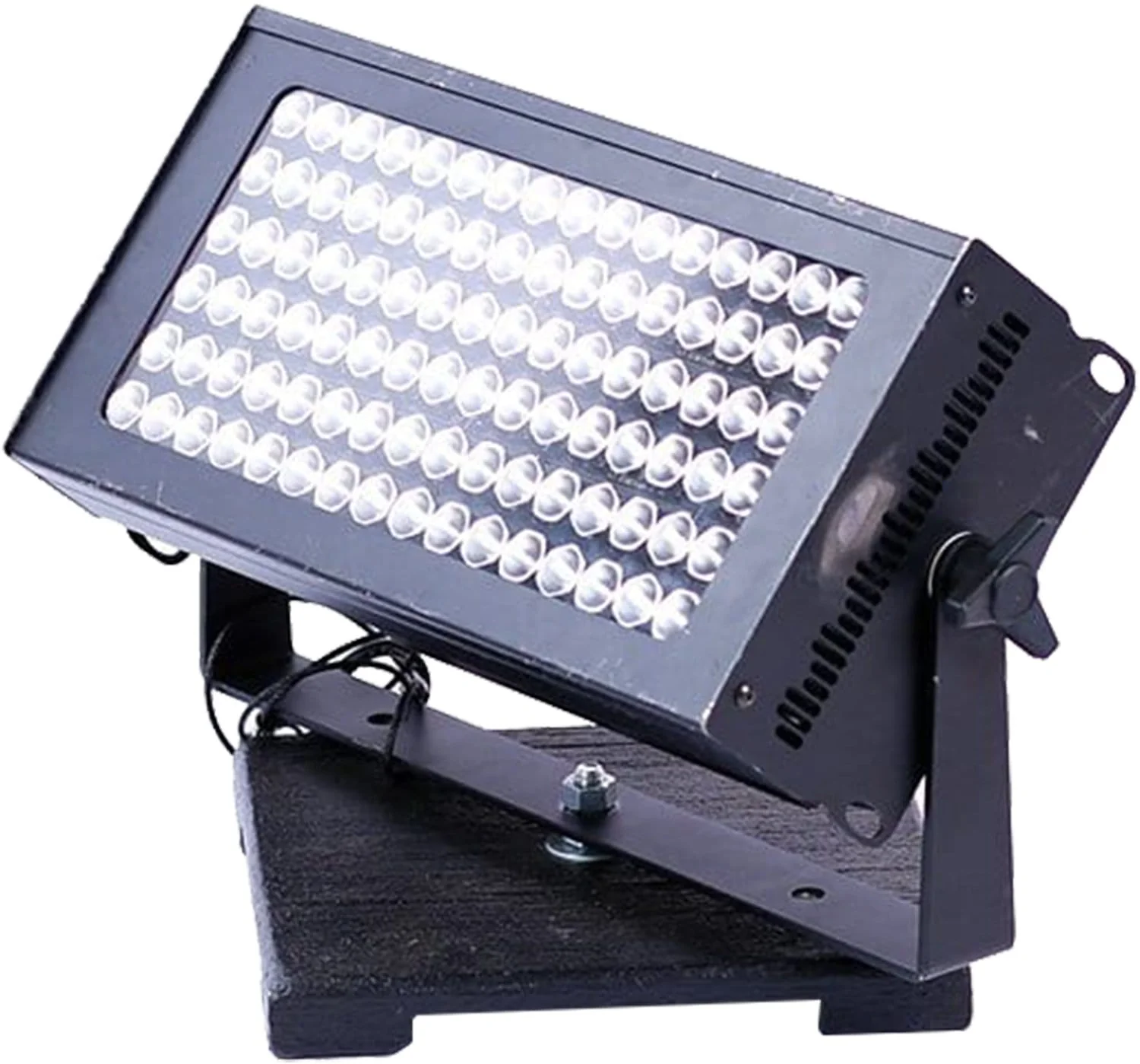

Solaris LED Flare Q+ LED RGBW Strobe

SGM SGMP521 LED RGBW 10W IP65 Stroboscope w/ Lens

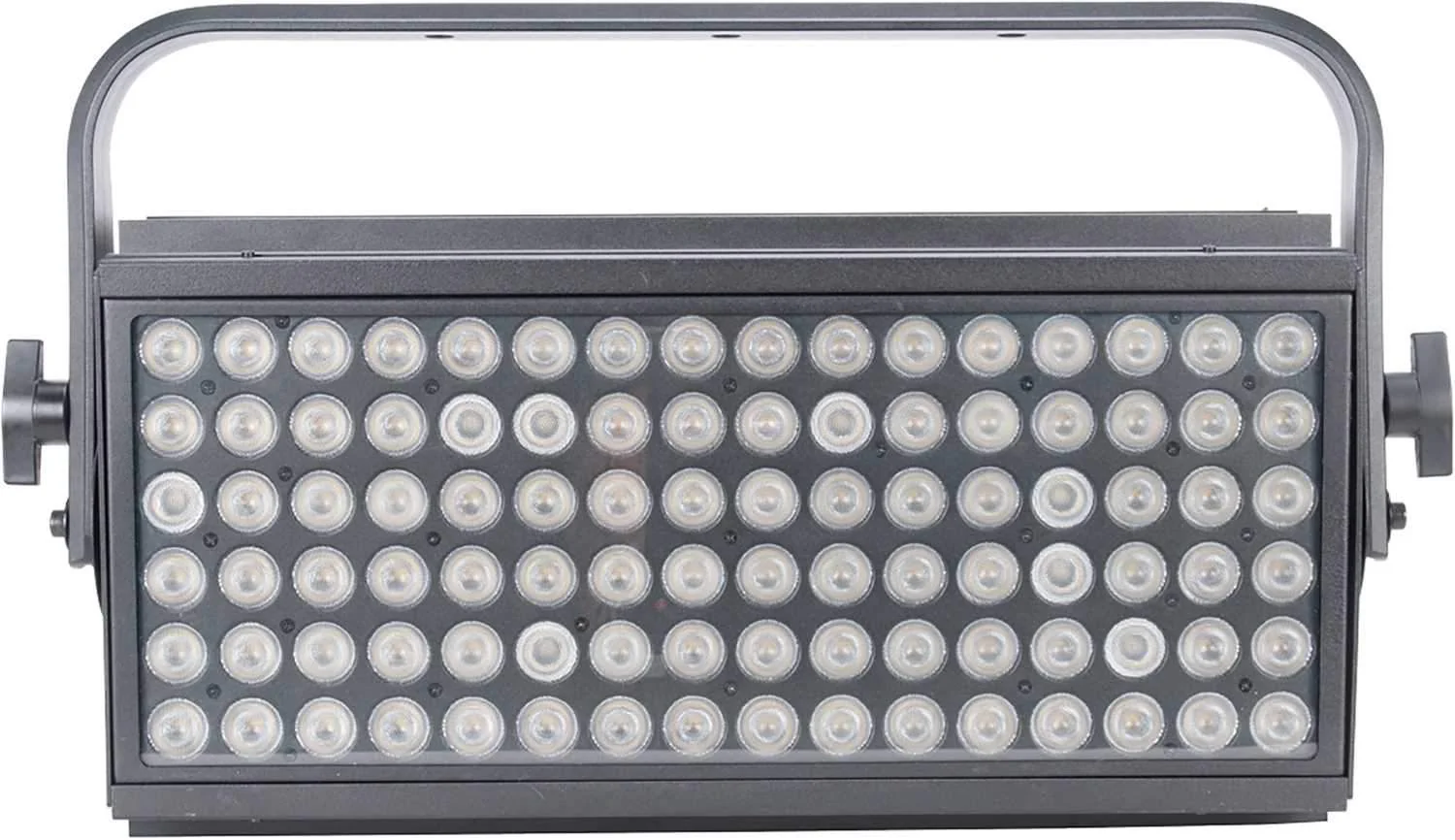

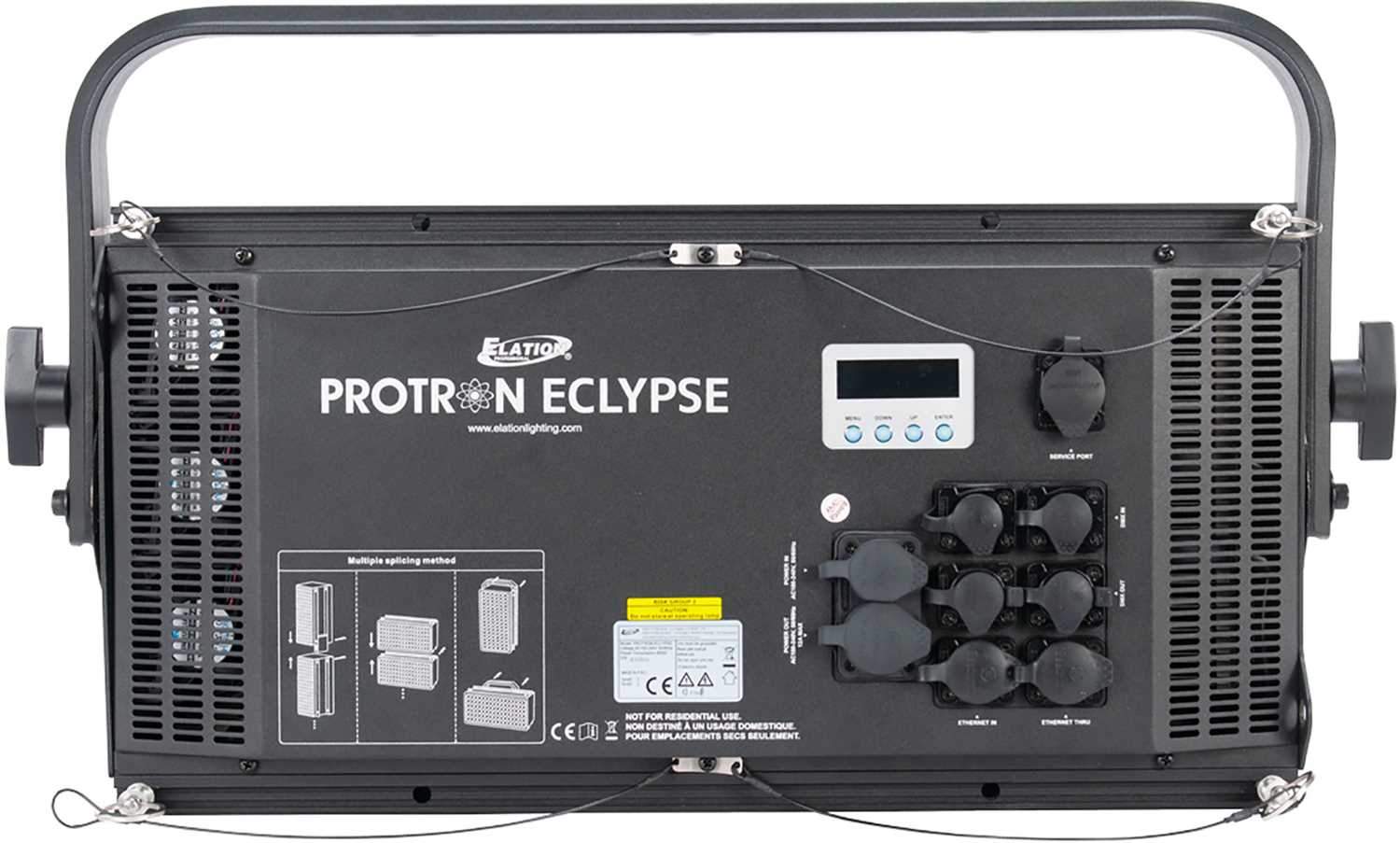

Elation PROTRON ECLYPSE 96 x 10W RGBW LED Strobe
