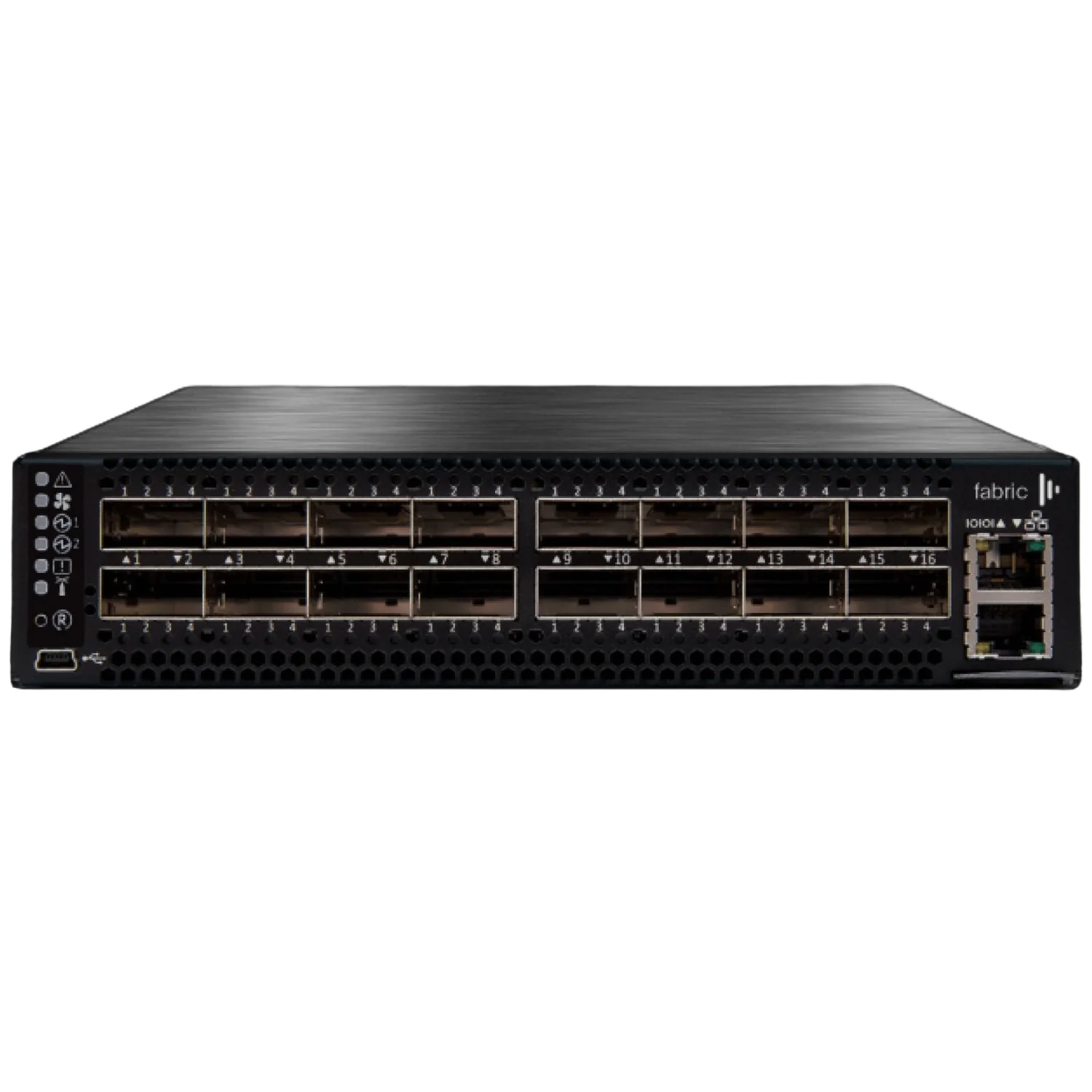

Disguise D3FABRIC Preconfigured Network Switch

Fabric is a preconfigured network switch built to connect your VX, GX and RX servers at the highest bandwidth so that each frame is delivered accurately.

BENEFITS

Why Choose Fabric

Ready to go

Connect to your Disguise systems in minutes - without the need for network engineering knowledge. Fabric is preconfigured to work with RenderStream and all our media servers.

High Bandwidth Networking

Fabric includes up to 64 network ports optimised to work effectively with any Disguise system so you can stream content at 4K over 100GbE networking.

Fully bundled

Built for powerful and robust performance, Fabric is available in five different bundle types depending on the scale and networking required for your set-up.

Specifications

Voltage: 100–240VAC, 50/60Hz
Power Consumption:
- Typical Power: 94.3W (typical power with passive cables)
- Max power with optical cables: 248.6W (assuming 3.5W per each QSFP28 port)
Operating System: Mellanox Onyx
Mounting System: 1U 19" rack mount
Environmental Tolerances:
- Temperature: 0–40°C (32–104°F)
- Humidity: 10%–85% (non-condensing)
- Altitude: 0–10,000 ft (0–3050m)
Throughput: 3.2Tb/s
Speed:
- Default: 1× 1GbE
- 7× 100GbE
- 32× 25GbE (Quad Split)
- Configurable to: 1/10/25/40/50/100GbE per port

System Connectivity I/O

Connector Cage: 16× QSFP28
Supported Modules and Cables:
- QSFP28, SFP28 short and long range optics
- QSFP28 to QSFP28 DAC cable
- QSFP breakout cables 100GbE to 4× 25GbE DAC, optical

Disguise

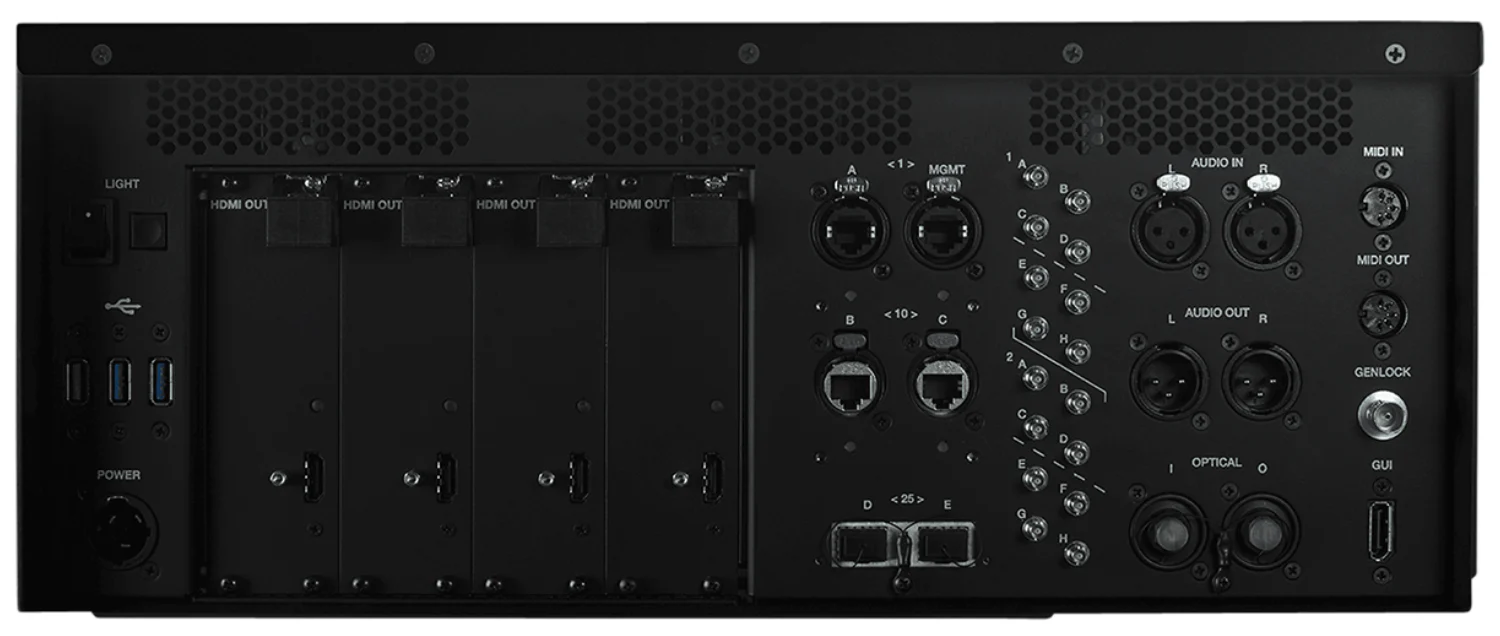

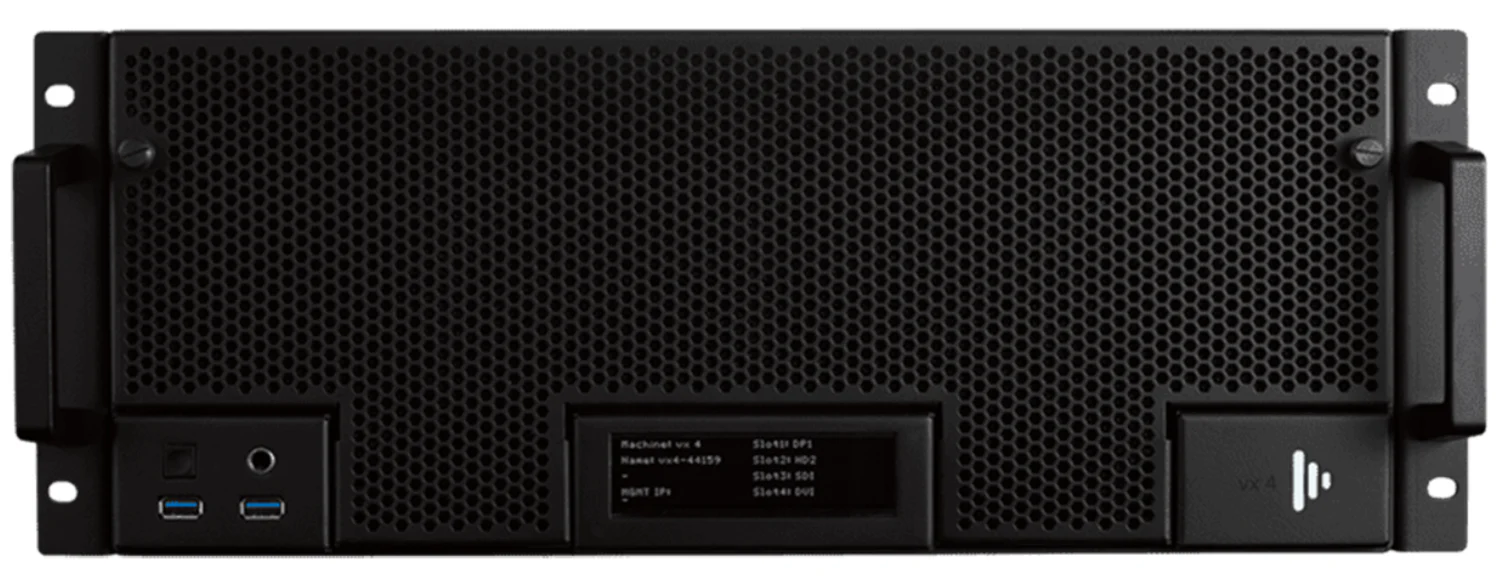

Disguise D3VX4 Media Server 2nd Gen with 4x VFC HDMI 2.0
