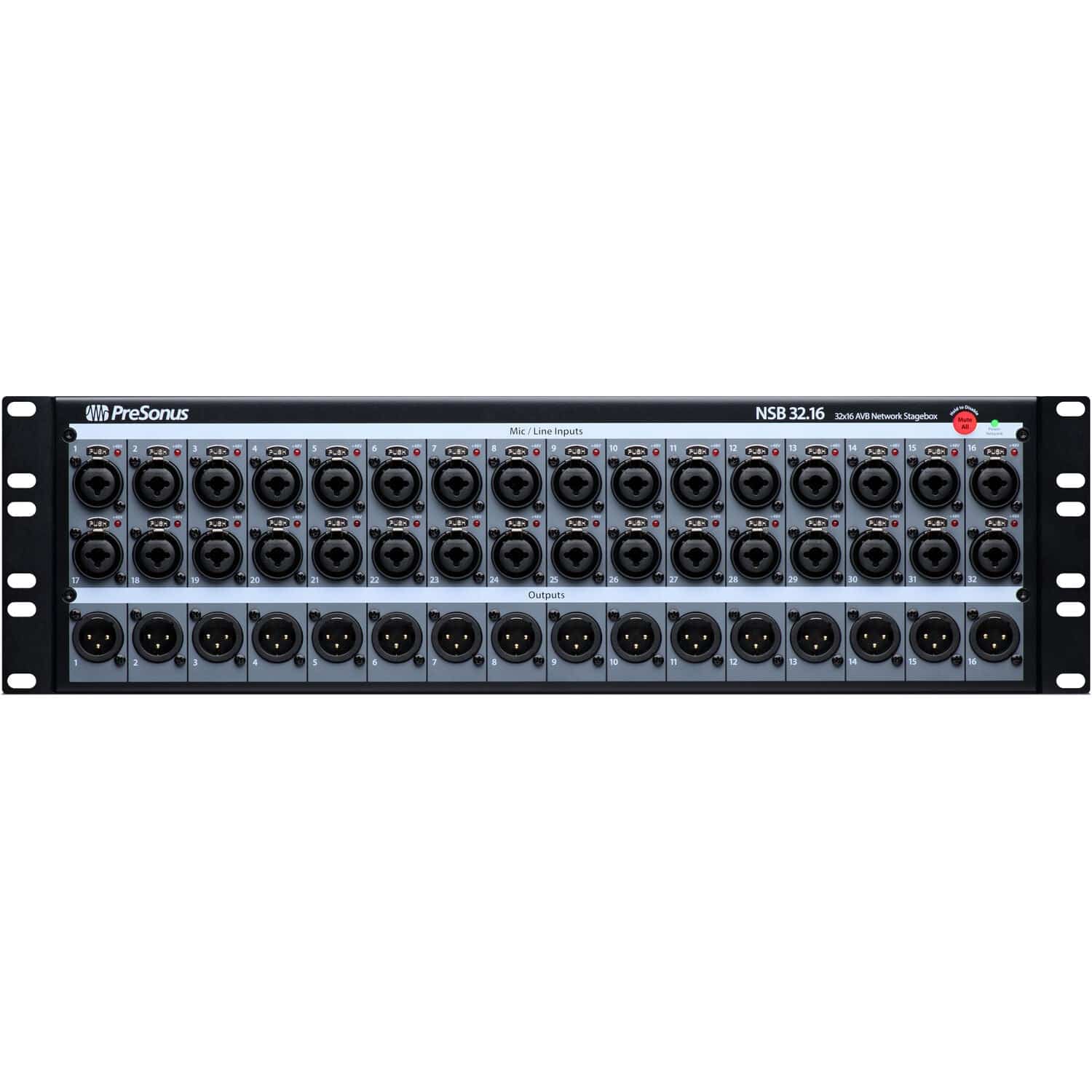

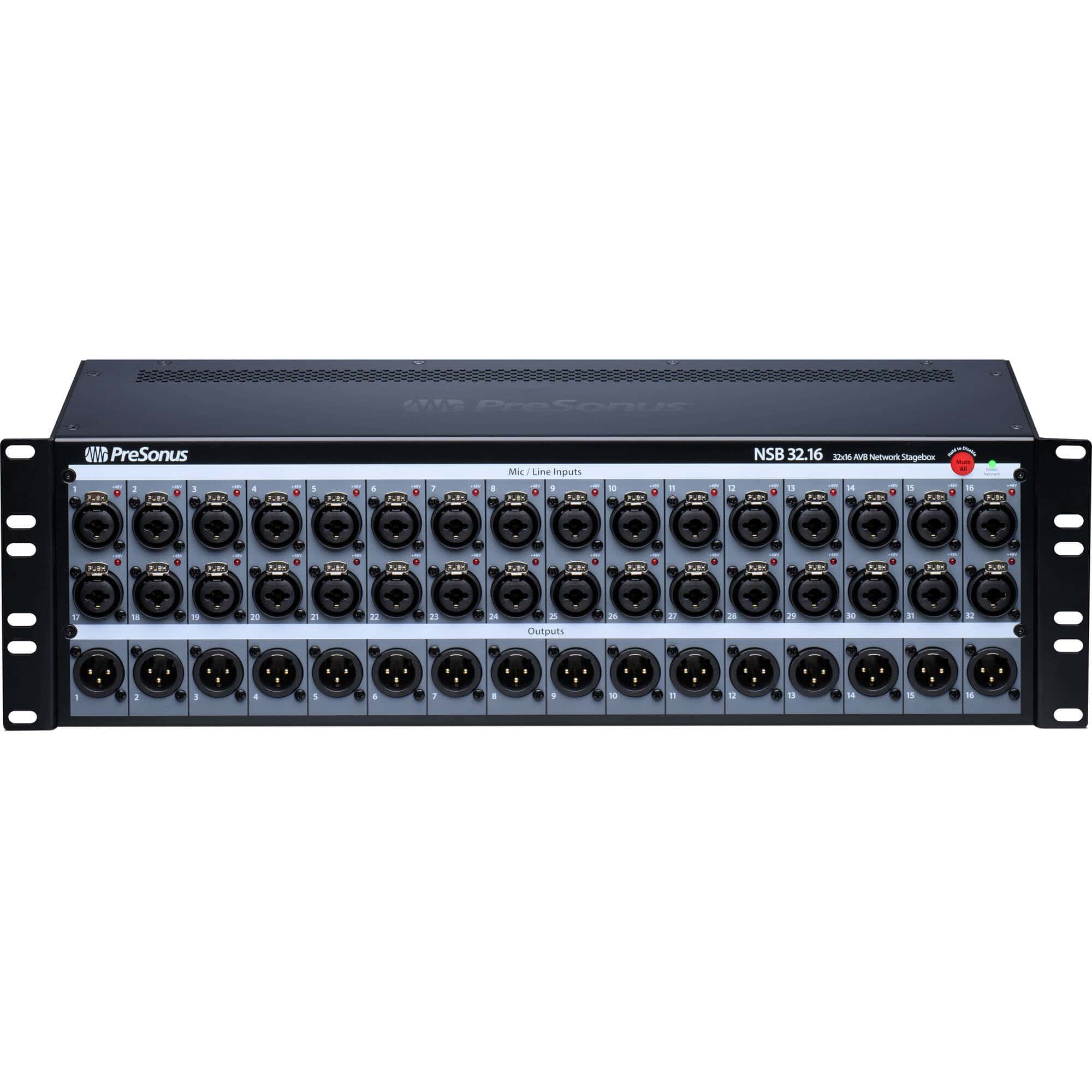

Presonus NSB32.16 32-Channel AVB Networked Stage Box

The PreSonus® NSB 32.16 networked stage box lets you put analog I/O for your StudioLive® Series III digital mixer wherever you need it. Equipped with 32 digitally controlled XMAX mic preamps, 32 balanced line level inputs, 16 analog outputs, and 2 stereo AES3 digital outputs, the NSB 32.16 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remotely control input trim, phantom power, and more, directly from your StudioLive Series III console or UC Surface remote mixing software on your tablet or laptop.

Features:

32x16 network stage box for StudioLive Series III console mixers
36 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
16 line outputs
Easy configuration from StudioLive Series III console mixers and UC Surface
Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
Rugged all-metal stage box enclosure
Included multi-position rack ears
Compatible with stage pockets from Ace Backstage

Specifications:

Microphone Preamplifier:
- Input Type: XLR Female, balanced
- Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
- Input Impedance: 1 kΩ
- THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
- S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
- Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
- Gain Control Range (±1 dB): 0 dB to +60 dB
- Maximum Input Level (unity gain): +12 dBu
- Phantom Power (±2 VDC): 48 VDC, switchable per channel
Line Inputs:
- Type: ¼” TRS Female, balanced
- Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
- Input Impedance: 10 kΩ
- THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
- S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
- Maximum Input Level: +18 dBu
XLR Outputs:
- Type: XLR Male, balanced
- Maximum Output Level: +24 dBu, ±0.5 dBu
- Output Impedance: 100Ω
Digital Audio:
- ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
- DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
- AVB Audio Network Ports: Locking XLR Ethernet
- Sampling Rate: 48 kHz, 44.1 kHz
Power:
- Connector: Locking IEC
- Input-Voltage Range: 90 to 230 VAC (±10%)
Physical:
- Height: 5.25” (133 mm)
- Width: 19” (482 mm)
- Depth: 5.25” (133 mm)
- Weight: 10.2 lbs. (4.6 kg)

Digital Snakes & Stage Boxes

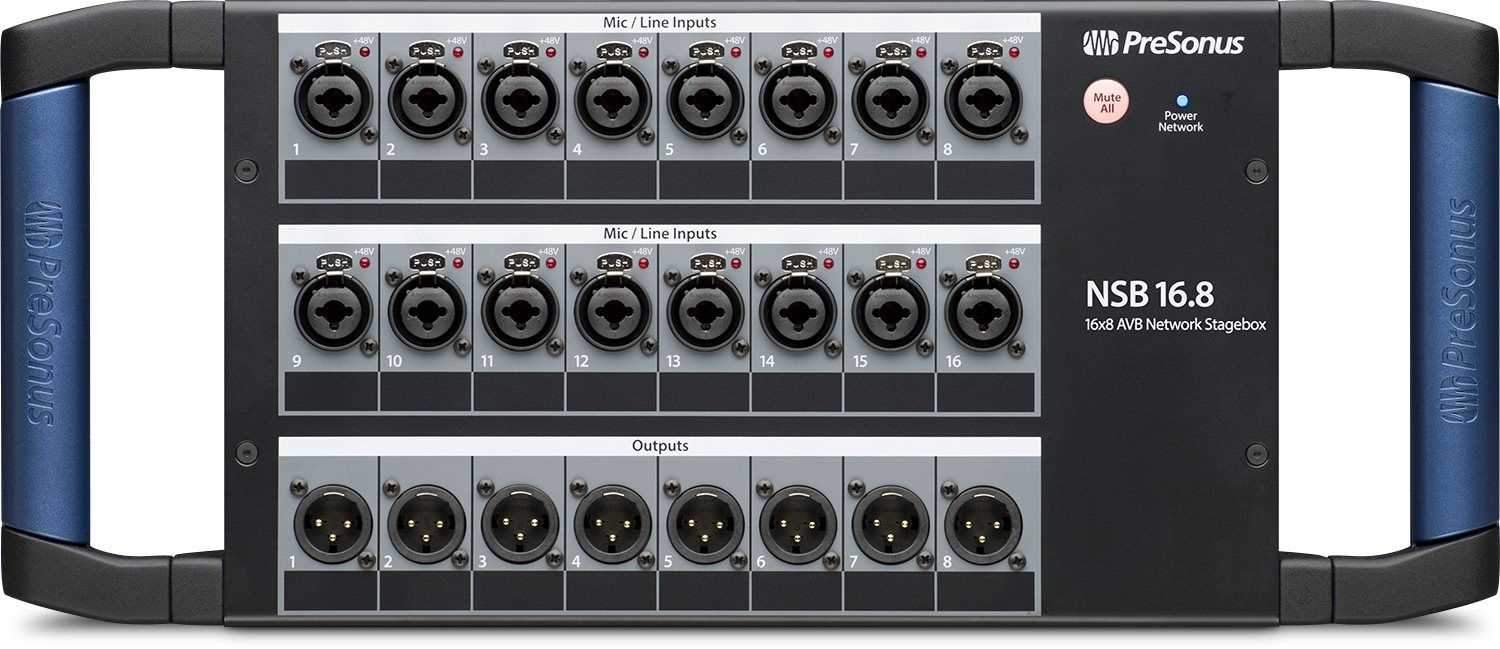

PreSonus NSB 16.8 16x8 AVB Networked Stage Box
