d&b audiotechnik T10 Loudspeaker with NL4 Connections

FOR USED ONLY - This item will only be sold in even numbers

Available from Mid-September 2026

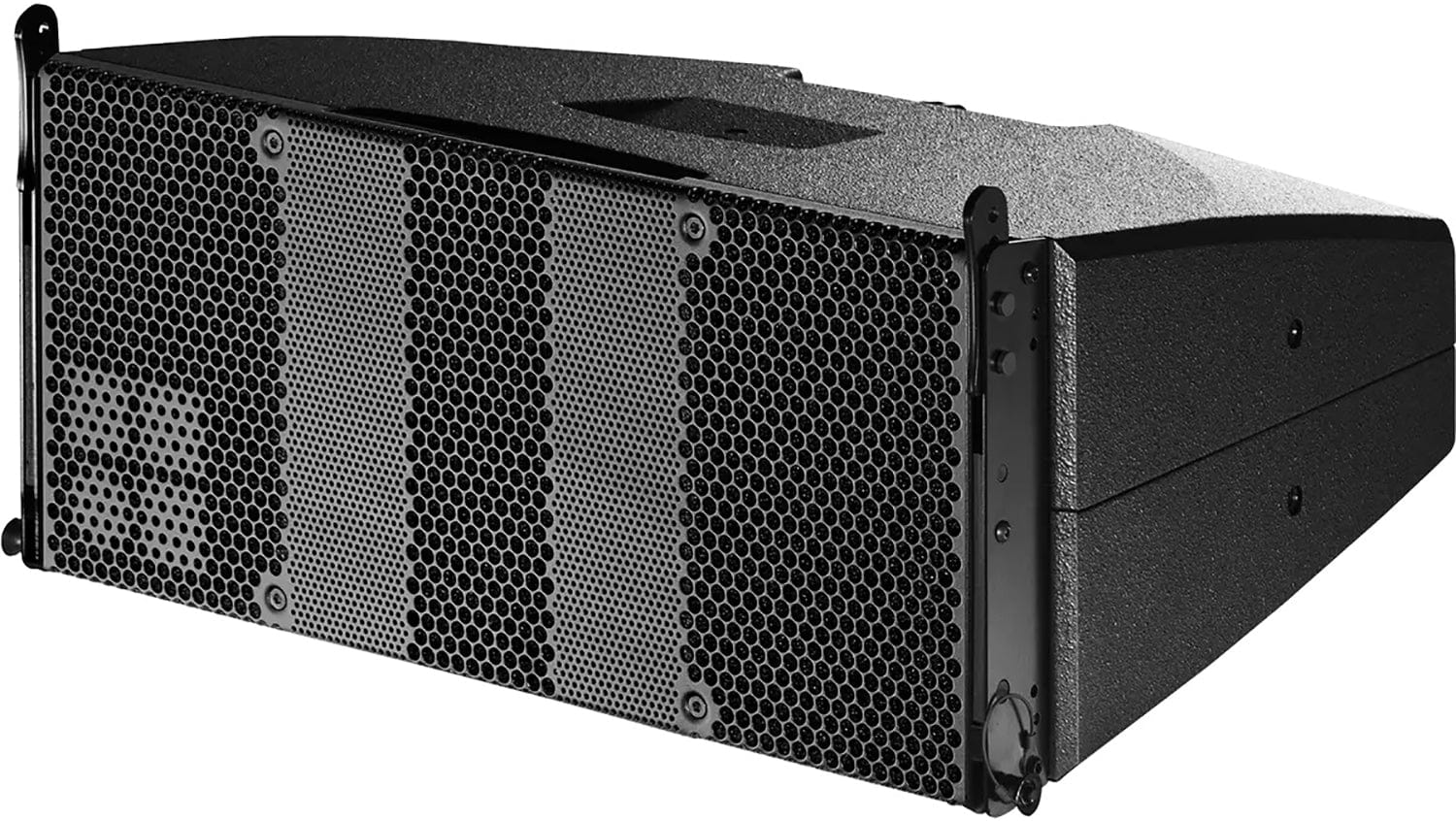

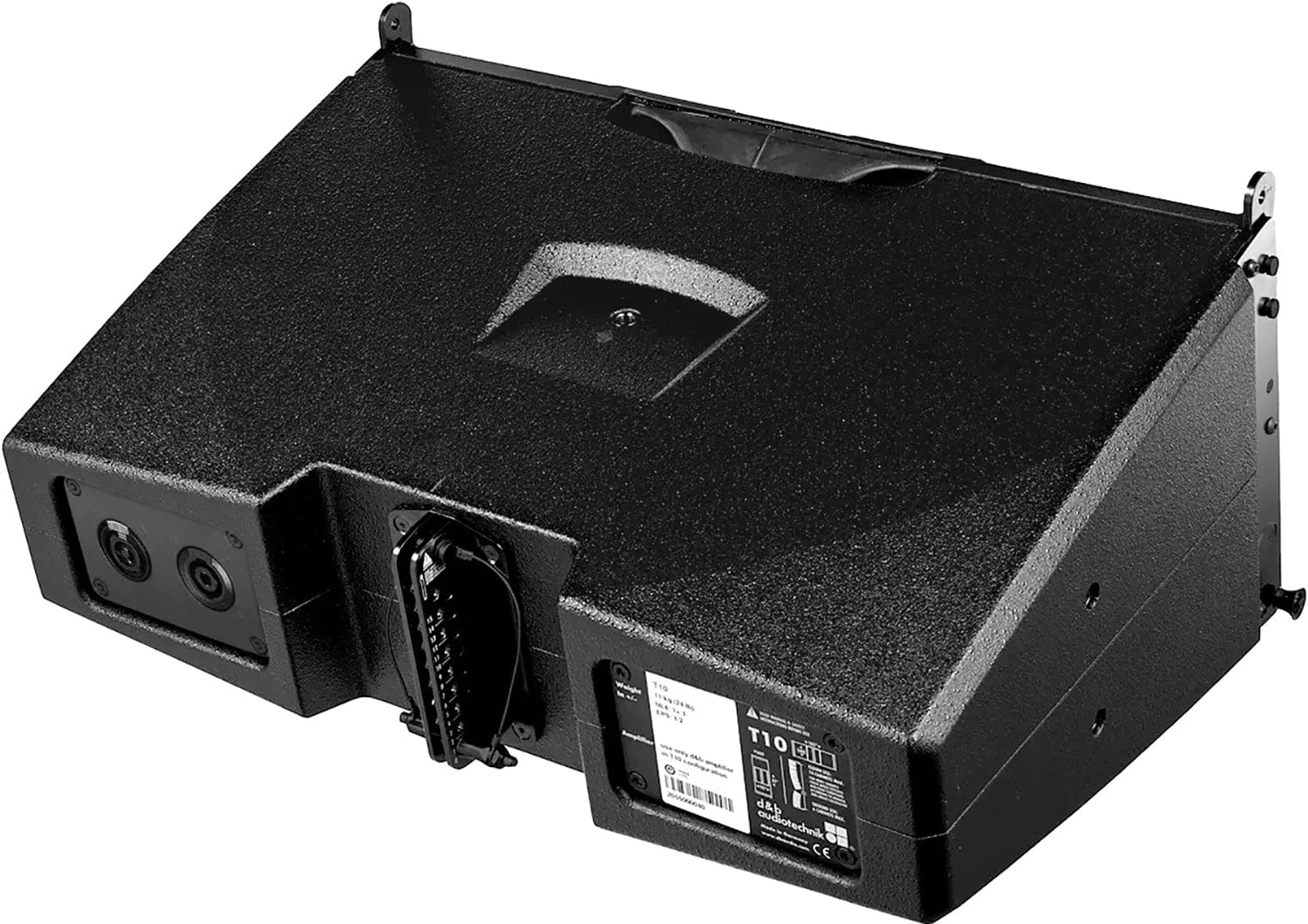

The T10 is a passive 2-way loudspeaker housing two 6.5" drivers positioned in a dipolar arrangement and a 1.4" HF compression driver and a passive crossover network. The T10 can be used both as a line array and as a high directivity point source loudspeaker. The HF driver is fitted to a unique waveguide horn producing vertical line source directivity with a 90° horizontal pattern that is maintained down to approximately 600 Hz. An acoustic lens placed in front of the horn widens horizontal dispersion to 105°, rotation of the horn by 90° relative to this produces an accurate point source dispersion, transforming a vertically oriented T10 into a stand-alone full range loudspeaker with 90° horizontal and 35° vertical directivity pattern. The T10 cabinet is constructed from polyurethane integral hard foam, incorporates integrated line array rigging hardware and has an impact resistant finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, and two NL4 connectors wired in parallel are mounted on the rear panel.

Specifications:

System data:
- Frequency response (-5 dB standard): 68 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 120 Hz - 18 kHz
- Max. sound pressure:
  - with 10D: 129 dB2 / 127 dB3
  - with D20/5D/30D: 132 dB2 / 130 dB3
  - with D40/D80/40D: 132 dB2 / 130 dB3
- Cabinets per amplifier channel: 4
Loudspeaker data:
- Configuration: 2-way loudspeaker with rotatable horn for point and line source operation
- Nominal impedance: 16 Ω
- Power handling capacity (RMS/peak 10 ms): 200 /800 W
- Nominal dispersion angle (point source, h x v): 90° x 35°
- Nominal dispersion angle (line source, horizontal): 105°
- Components:
  - 2 x 6.5" driver with neodymium magnet
  - 1.4" exit compression driver on rotatable waveguide
  - passive crossover network
- Connections: 2 x NL4
Dimensions / weight:
- Dimensions (H x W x D): 197 x 470 x 300 mm (7.8 x 18.5 x 11.8")
- Weight: 11 kg (24 lb)
