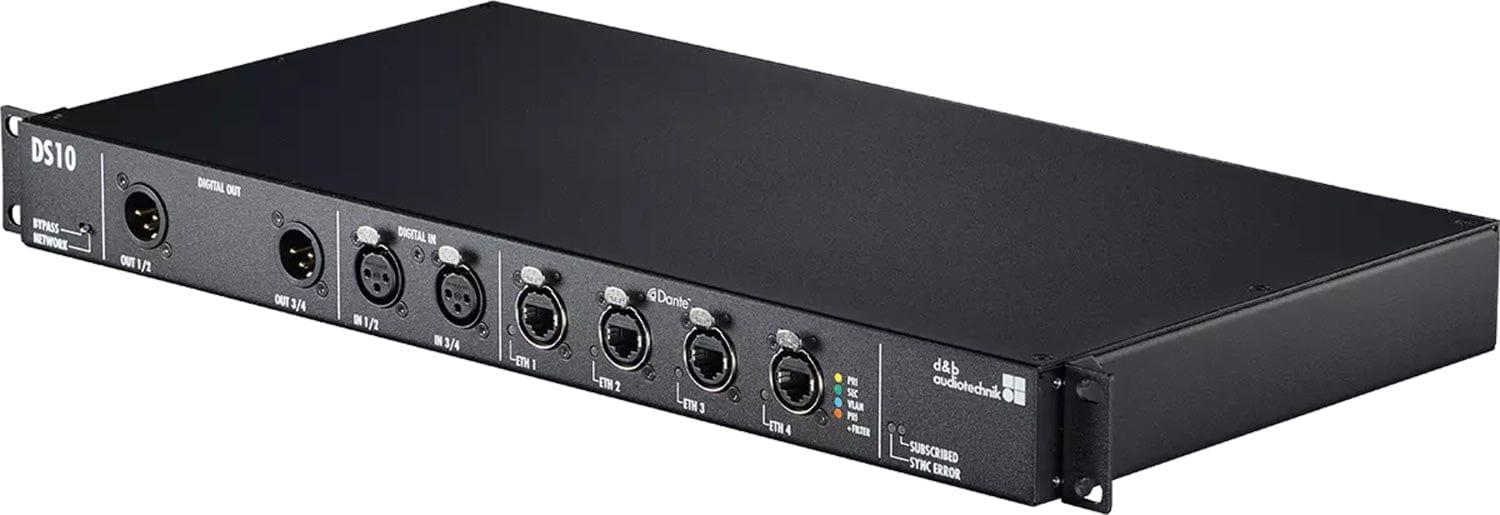

d&b audiotechnik DS10 Audio Network Bridge

The DS10 Audio network bridge interfaces between Dante networks and AES3 digital audio signals, while also providing distribution of Ethernet control data. Positioned within the signal chain in front of the amplifiers, this 1 RU device expands the d&b system approach in both mobile and installation environments. Each unit can deliver up to sixteen Dante network channels via AES3 digital signal outputs. The AES3 channel streams from the DS10 carry meta data with Dante channel labels and cabling information to the four channel d&b amplifiers. Additionally, four AES3 input channels provide access to the Dante audio network for applications such as a break-in from a Front of House console.

Features:

16 AES3 digital output channels
4 AES3 digital input channels
Integrated 5-port network switch

Specifications:

Controls and indicators:
- BYPASS/NETWORK: Toggle switch
- SUBSCRIBED (RX Subscription): Green LED indicator
- SYNC ERROR: Red LED indicator
- Switch port modes/Audio loss: LED indicators
Digital inputs:
- DIGITAL IN: 3 pin XLR female AES3
- Sampling: 32 - 192 kHz
- Synchronization: Sample Rate Converter (SRC)
Digital outputs:
- DIGITAL OUT: 3 pin XLR male AES3
- Sampling: 48 / 96 kHz
- Synchronization: Dante network
Network:
Connectors:
etherCON®
built-in 5-port Ethernet switch
100/1000 Mbit
Operating conditions:
- Humidity (rel.), long term average: 70%
- Storage temperature: –20 °C ... 70 °C / –4 °F ... 158 °F
- Temperature range: 0 °C ... 40 °C / 32 °F ... 104 °F
Power supply:
- Mains connector: powerCON®
- Overvoltage protection: Up to 400 VAC
- Rated mains voltage: 100 - 240 V, 50 - 60 Hz
Dimensions / weight:
- Dimensions (H x W x D): 1 RU x 19“ x 232 mm
- Weight: 3.75 kg / 8.26 lb

d&b audiotechnik

d&b audiotechnik DS10 Audio Network Bridge

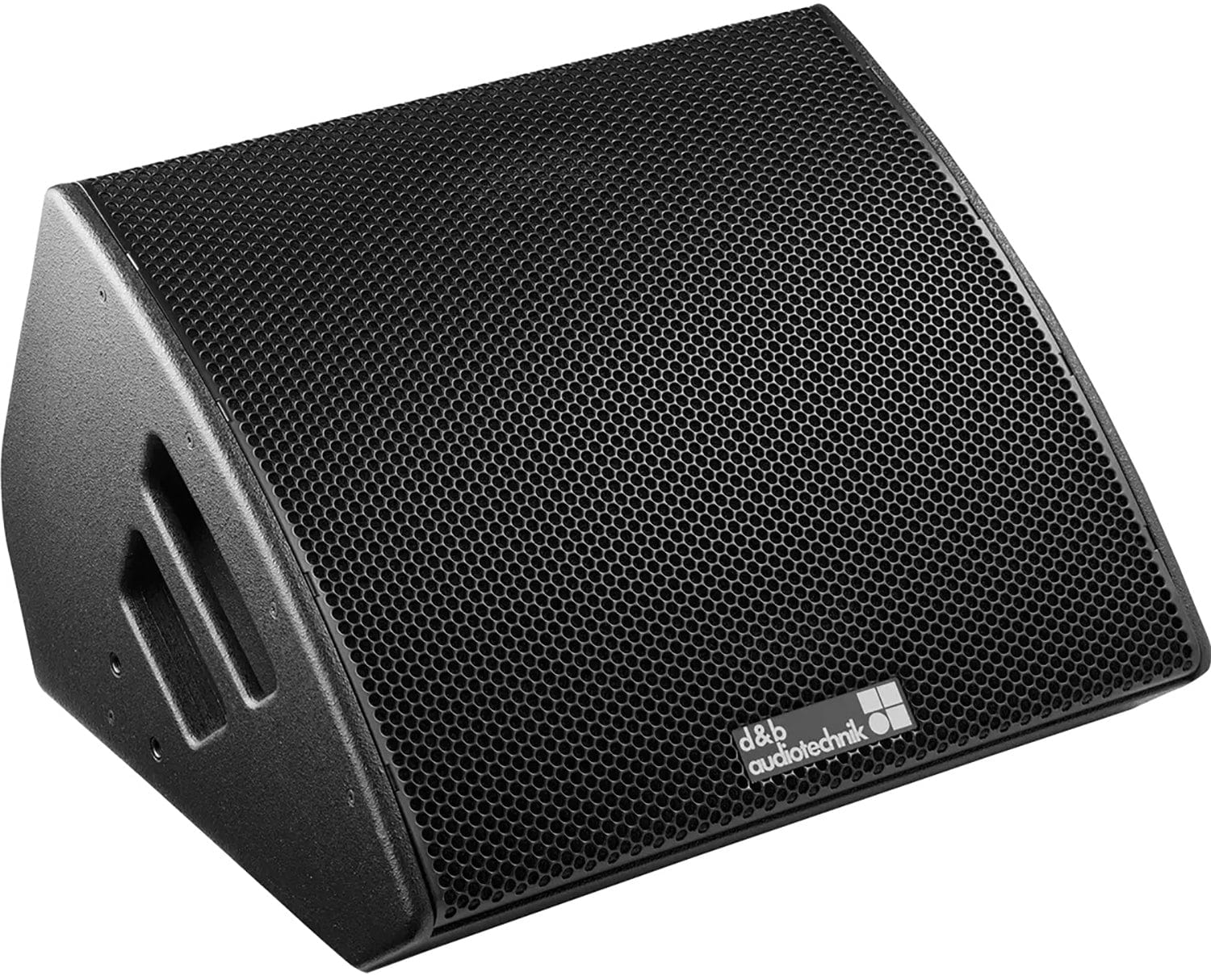

d&b audiotechnik M4 Stage Monitor with NL4 Connections

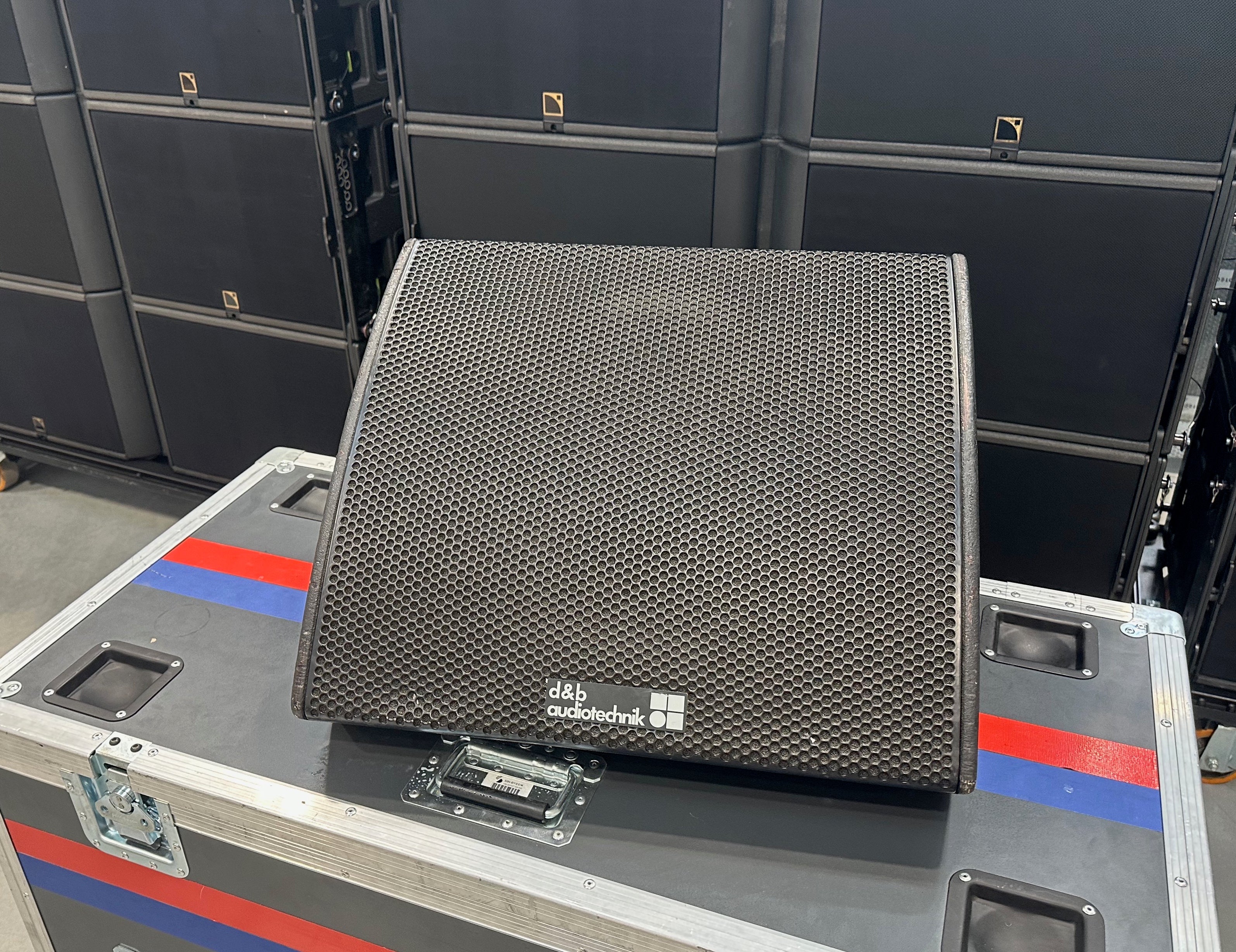

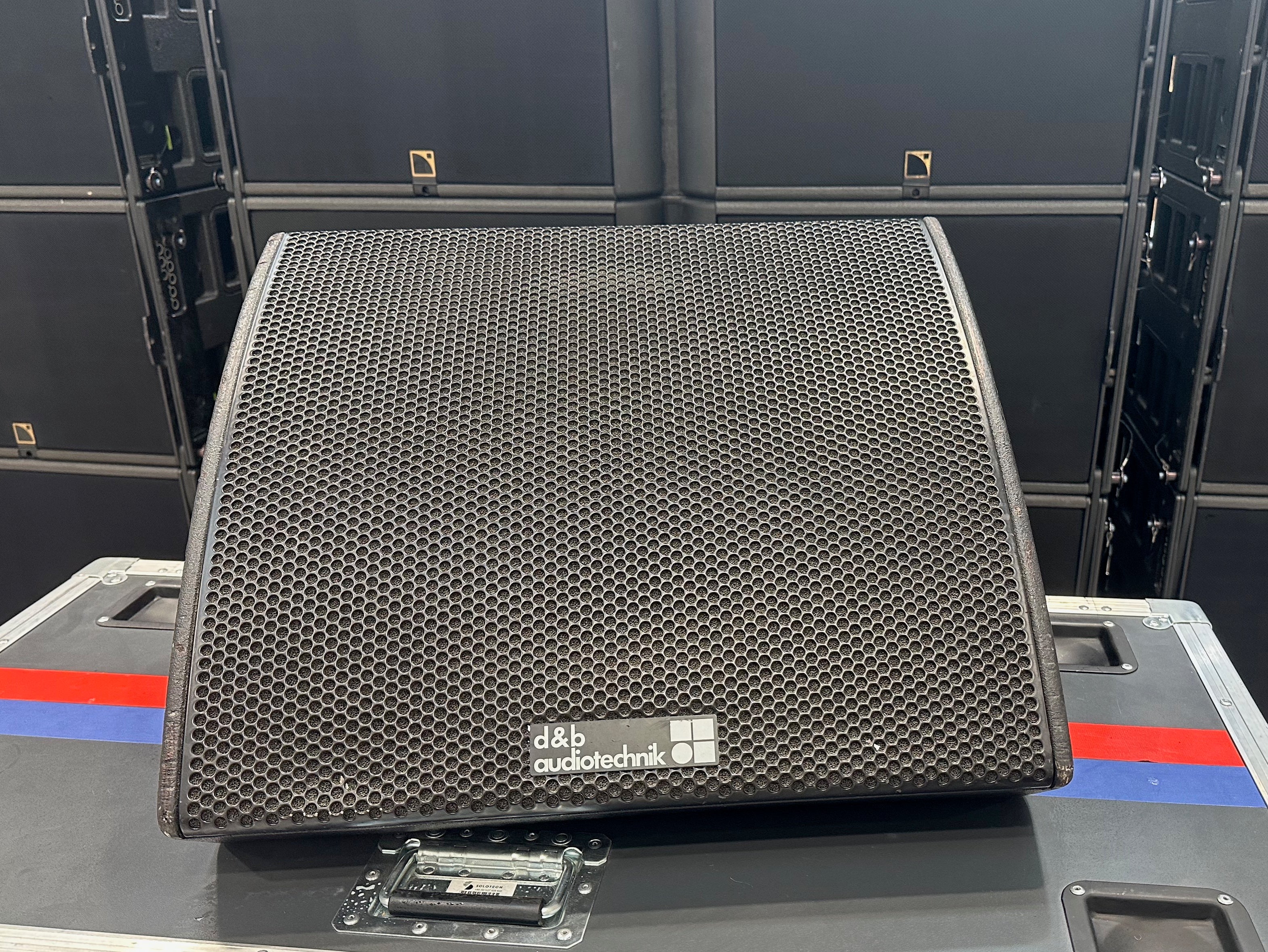

d&b audiotechnik Used M4 Stage Monitor
