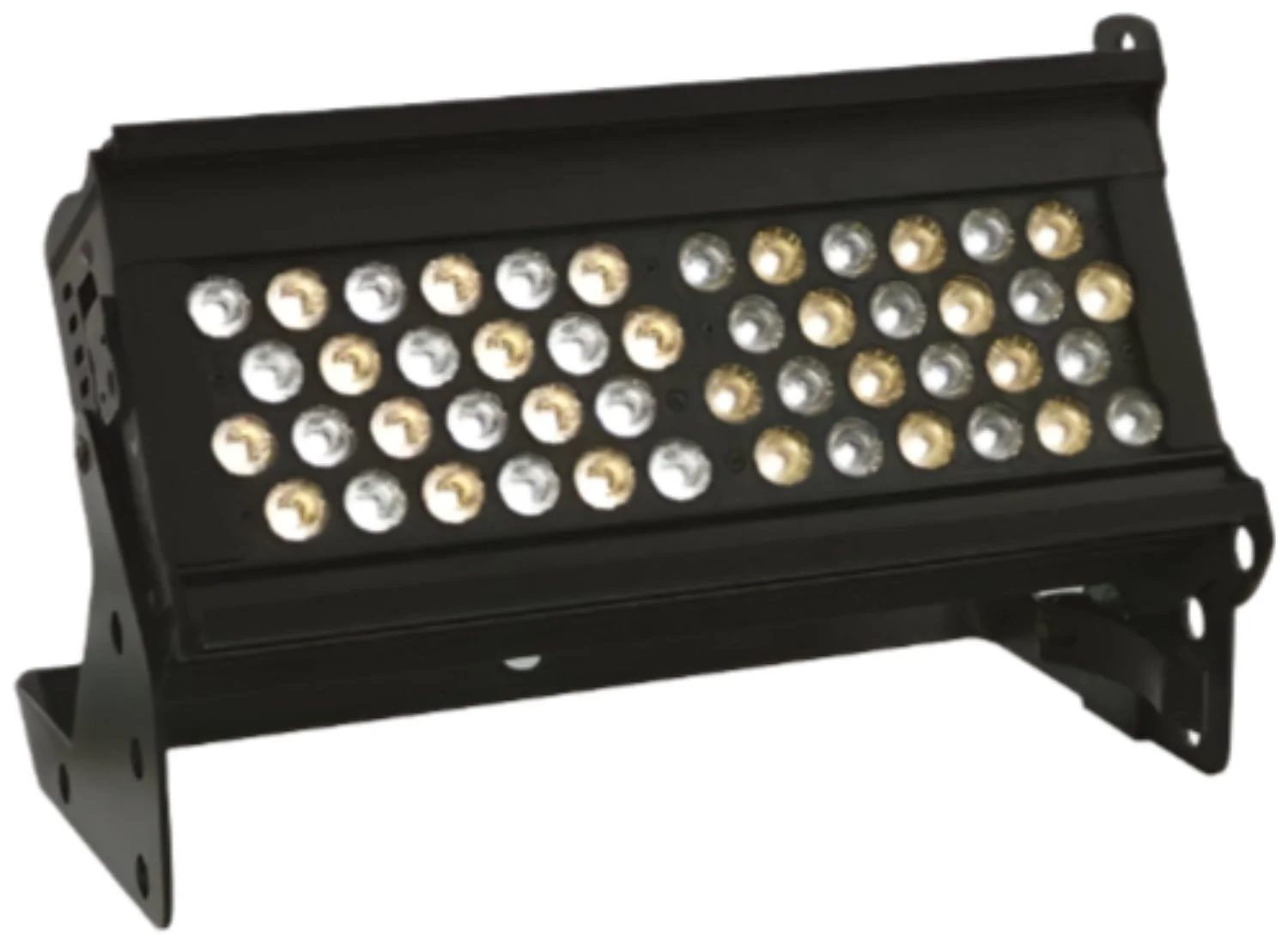

Chroma-Q Studio Force V 12 White LED Fixture 12"

Utilizing the same core technologies as the innovative Chroma-Q® Color Force 12™ multi-purpose LED fixture, the Studio Force V 12™ is a 3,000K - 6,100K CCT, variable white version featuring laboratory calibrated 3200°K and 5600°K presets that is specifically designed for TV, film, touring, exhibitions, corporate events and theatre lighting applications. At only 300mm / 1ft* long, the unit is ideal for floor, wall or truss mounting. It also provides an extreme output of 5,930 lumens for evenly washing large areas, complemented by smooth, theatrical grade dimming.

*Measurements may have been rounded, please see specification sheet for full measurements.

Key Features

3,000K - 6,100K CCT variable white
Extreme output - 5,930 lumens
Extremely smooth uniform wash
Theatrical grade dimming
Ideal for TV, film, touring, exhibitions, corporate events and theatre
335mm / 1ft* length ideal for floor, wall or truss mounting
PowerCon input and output for easy daisy chaining of fixtures
Broad range of accessories available, including lightbank kit and barn door
Hidden quick release fixings
Also available as a DC battery-powered version

Technical Specification

Product Code: CHSFV12NF
Dimensions**: 335mm x 190mm x 218mm / 13.2" x 7.5" x 8.6"
Weight: 4kgs / 9lbs
Shipping Dimensions: 432mm x 343mm x 279mm / 17" x 13.5" x 11"
Shipping Weight: 6kgs / 13lbs
Power Supply: Built-in
Power Input Rating: 100-240V AC, 50-60 Hz, 160VA
Power Factor: 0.997
Power Consumption: 150W
Typical Power & Current: Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%

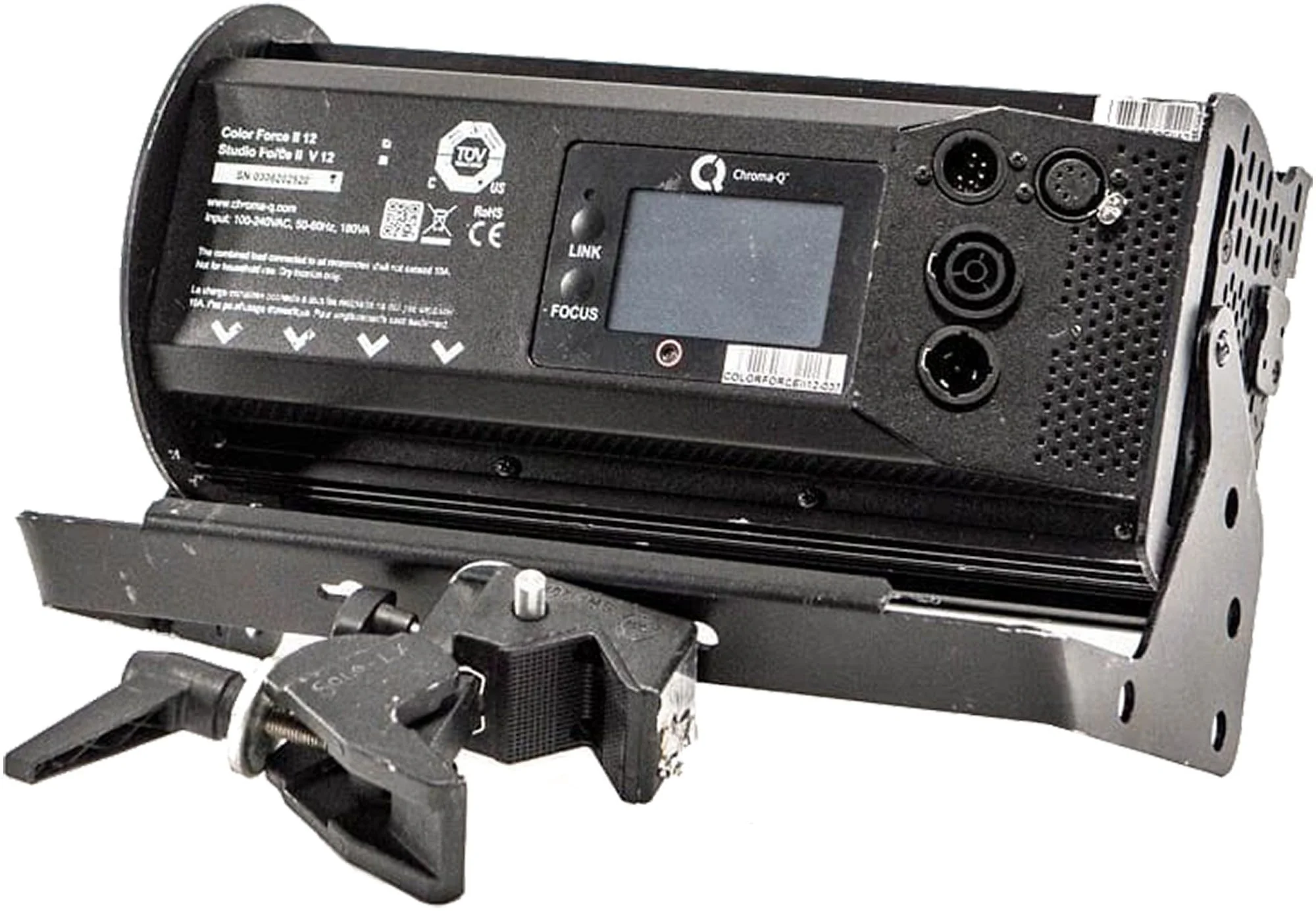

Power Connector In/Out: PowerCon
Data Connectors In/Out: XLR 5-pin
Control Protocol: ANSI E1.11 USITT DMX512-A
Cooling System: Forced - 1 fan
Operating Temperature: 0°C to 40°C
Construction: Anodised aluminium extrusion
Colour: Black
Built-In Hardware: Quick release lever for tilt adjustment
IP Rating: IP20
Approvals: CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750

Control & Photometric Data

LED Engines: 2
LEDs Per Engine: 12 Cold White / 12 Warm White
Total LEDs: 48
Control Modes:

8 channels WWWW
2 channels sWWCW
2 channels WW/CW
1 channel CTI
1 channel Look Select
Master Standalone
Slave Standalone
Manual

Dimming Curve: Theatrical
Variable Effects Engine: Yes
Effects Parameters: Intensity Effects
Hot Lumen Output: White 5,930 hot lumens @ 4,615K
Optics: Specialised close focus lens
Beam Angle: ~23°
Beam Angle with Optional Cyc Optic: 80 x 30° (approx.)
Beam Angle with Optional Border Optic: 60° (approx.)
Beam Distribution: Asymmetrical direct illumination
CCT: 3,000K - 6,100K
Colour Gamut: Performance enhanced
CRI: >80
Lamp Life: L70 at 50,000 hours

Chroma-Q

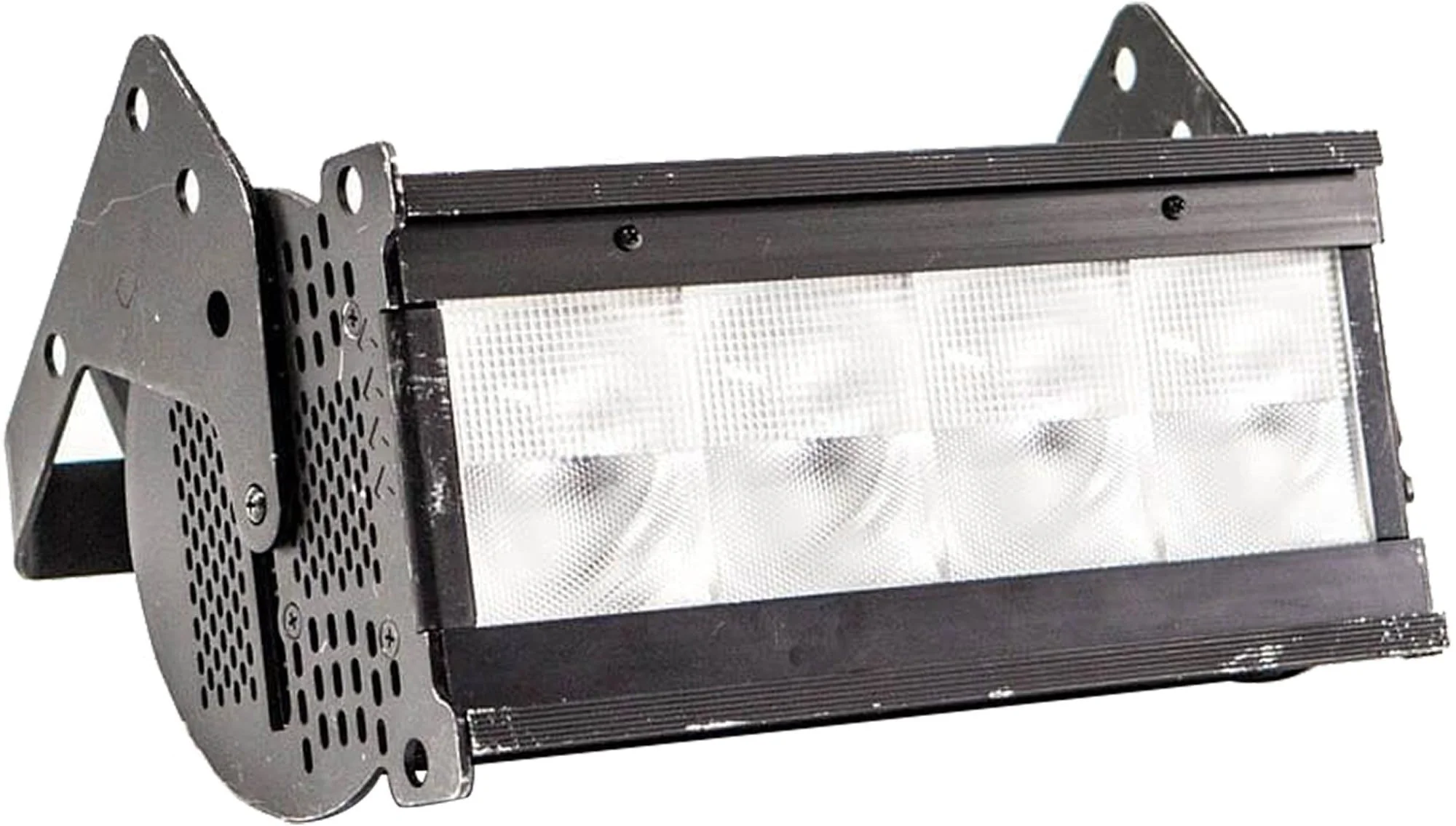

Chroma Q Color Force II 12 RGBA Linear LED Fixture
